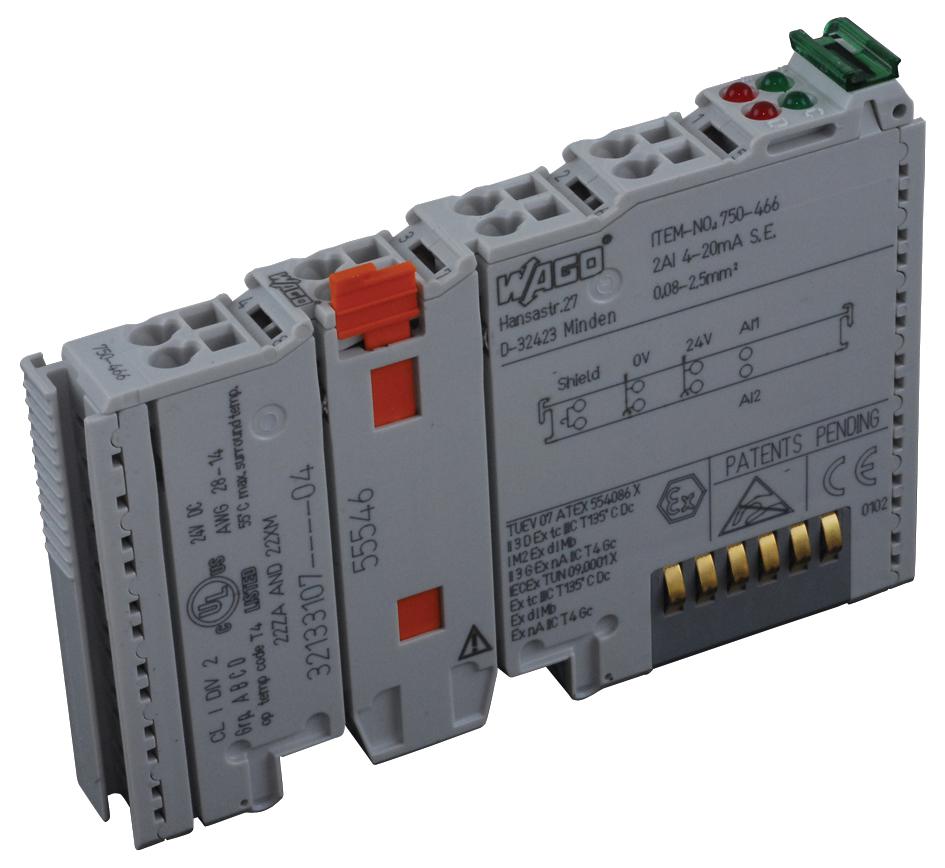

WAGO 750466 Analog Input Module
The 750-466 is a 2-channel single-ended analog input module designed for automation and process control applications. It provides power to field devices, receives transmitted analog signals with electrical isolation, and transmits them to the fieldbus. The module features a 24V power supply derived from its power jumper contacts, a DIN rail mounting type, and uses CAGE CLAMP® connection technology. It has a 12-bit resolution, offers 500V system and supply isolation, and has an IP20 protection rating. The module is suitable for operating in temperatures from 0 to 55°C and can supply voltage to 2-wire transducers.
WAGO 750466 Analog Input Module Specifications:
- Number of inputs: 2
- Power supply: Via system voltage DC/DC, 75 mA internal consumption
- Input voltage (max): 0 - 20mA, 4-20mA, 0-20mA or 3.8 mA to 20.5 mA depending on model
- Extended temperature range: 0°C to 55°C
- Input resistance: Less than 2200/20 mA
- Resolution: 12 bits
- Conversion time: 2 ms
- Measuring error at 25°C: Less than 0.2% of full scale
- Isolation: 500 V system/supply
- Input current range: 0.05 to 20.5 mA
- Protection rating: IP20
- Connection: CAGE CLAMP® for wire sizes 0.08 mm² to 2.5 mm² / AWG 28-14
- Dimensions: Width 12 mm, weight approximately 36.29 g
- Compliance: UL508, CE, EN 610006-2, EN 610006-4, ATEX, IECEx
- Operating temperature: 0°C to 55°C
Buy the WAGO Series 750 Series Analog Input Module: 750466
Purchase the WAGO 750-466 analog input module online today and enhance your automation setup with reliable 2-channel measurement, high accuracy, and electrical isolation. Designed for industrial control systems, it features 12-bit resolution, IP20 protection, and universal compatibility with 0-20mA and 4-20mA signals, ensuring seamless integration into your production environment. Built for durability, this module supports extended temperature ranges up to 55°C and provides 500V isolation for safety and reliability in demanding conditions. Order now for optimized process control and improved system performance.
Get WAGO 750-466 today—built for precise control and long-lasting durability in automation systems.
Frequently Asked Questions
Where can I buy WAGO 750466?
You can click on the BUY or RFQ button to purchase 750466 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 750466?
You can download the 750466 datasheet or visit the WAGO website for support.
Who is the manufacturer of 750466?
WAGO
