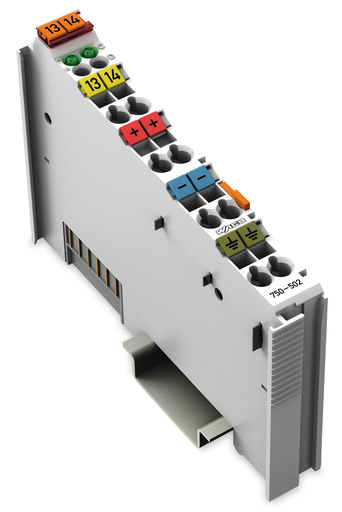

WAGO 750502 2-Channel Digital Output Module
The WAGO 750-502 digital output module provides a robust solution for transmitting control signals in industrial automation systems. It allows for the connection of actuators to automation devices, ensuring reliable operation with short-circuit protection and electrical isolation. The module's design facilitates easy integration into DIN-rail mounted systems, making it suitable for a wide range of applications including factory automation, process control, and building automation. Its compact size and versatile connection options contribute to efficient system design and maintenance.
WAGO 750502 2-Channel Digital Output Module Specifications:
- Number of digital outputs: 2
- Total number of channels (module): 2
- Type of signal: Voltage
- Type of signal voltage: DC 24 V
- Actuator connection: 2 x (2-conductor, 3 Leiter, 4 Leiter)
- Output characteristic: high-side switching
- Output current per channel: 2 A
- Switching frequency max.: 2.5 kHz
- Type of load: resistive, inductive, lamps
- Short-circuit limitation typ. Pwm: 35 A
- Inductive load switch-off energy dissipation W (max.): 0.14 J
- Max output data width (internal): 2 Bit
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 3.5 mA
- Field supply voltage: DC 24 V (-25 … +30 %); über Leistungskontakte (Einspeisung über Messerkontakt; Weiterleitung über Federkontakt)
- Current consumption, field supply (module with no external load): 15 mA
- Isolation: 500 V system/supply
- Indicators: LED (A, C) green: Status DO 1, DO 2
- Number of incoming power jumper contacts: 3
- Number of outgoing power jumper contacts: 3
- Current carrying capacity of the power jumper contacts: 10 A
- Connection technology In/Outputs: 8 x CAGE CLAMP®
- Connection type: Inputs/Outputs
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Width: 12 mm / 0.472 inch
- Height: 69.8 mm / 2.748 inch
- Height from upper-edge of DIN-35 rail: 62.6 mm / 2.465 inch
- Depth: 100 mm / 3.937 inch
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 1.153 MJ
- Weight: 47.2 g
- Conformity marking: CE
- Surrounding air (operating) temperature: 0 … 55 °C
- Surrounding air (storage) temperature: -40 … 85 °C
- Protection class: IP20
- Degree of pollution: 2 per IEC 61131-2
- Operating altitude: 0 … 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2, marine applications
- EMC emission of interference: acc. to EN 61000-6-4, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H S contaminant concentration: 10 ppm
- Permissible SO contaminant concentration: 25 ppm
- Product Group: 15 (Remote I/O)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454586652
- Customs Tariff No.: 85371098990
