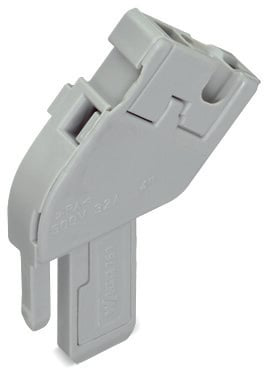

WAGO 769512 1-Conductor Female Connector
WAGO’s 769-512 modular X-COM®-SYSTEM female plug is designed for applications requiring varying numbers of poles, particularly useful when prototyping. This 1-pole connector allows for customization by combining it with base modules, center modules, and end modules. It is rated for 500V and 32A, and utilizes the CAGE CLAMP® connection technology for secure and reliable connections. The connector is suitable for conductors with a cross-section of 0.08 to 4 mm² and is designed for front-entry wiring. It is compliant with EN 60947 and EN 61984 standards, ensuring safe and reliable operation.
WAGO 769512 1-Conductor Female Connector Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 4 mm²
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 1
- Total number of connection points: 1
- Total number of potentials: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height: 37.1 mm / 1.461 inch
- Depth: 26.5 mm / 1.043 inch
- Module width: 5 mm / 0.197 inch
- Marking level: Side marking
- Contact type (pluggable connector): Female connector/socket
- Connector connection type: for conductors
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.048 MJ
- Weight: 2.613 g
- Product Group: 18 (X-COM-System)
- Country of origin: DE
- GTIN: 4017332619707
- Customs Tariff No.: 85366990990
Buy the 769-512 WAGO 1-Conductor Female Connector | myMectronic
Purchase the WAGO 769-512 female connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 769512?
You can click on the BUY or RFQ button to purchase 769512 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 769512?
You can download the 769512 datasheet or visit the WAGO website for support.
Who is the manufacturer of 769512?
WAGO
