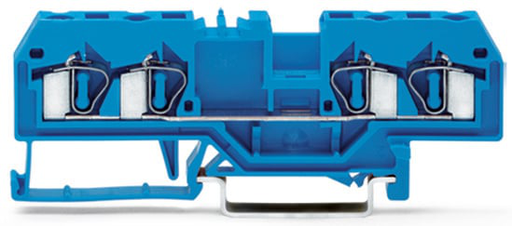

WAGO 281654 4-conductor Terminal Block
The WAGO 281-654 is a robust and reliable 4-conductor through terminal block designed for use in a variety of industrial applications. Its CAGE CLAMP® spring pressure connection technology ensures secure and easy connections, while its suitability for Ex i applications makes it ideal for hazardous environments. The terminal block is designed for DIN-rail 35 x 15 and 35 x 7.5 mounting and features a center marking for easy identification. When terminating aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, and nominal currents must be adapted accordingly.
WAGO 281654 4-conductor Terminal Block Specifications:
- Rated Voltage (III / 3): 800 V
- Rated Impulse Voltage (III / 3): 8 kV
- Rated Current: 26 A
- Connection Technology: CAGE CLAMP®
- Connectable Conductor Materials: Copper, Aluminum
- Solid Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 9 … 10 mm / 0.35 … 0.39 inch
- Total Number of Connection Points: 4
- Total Number of Potentials: 1
- Number of Levels: 1
- Width: 6 mm / 0.236 inch
- Height from Upper-Edge of DIN-Rail: 29 mm / 1.142 inch
- Depth: 86 mm / 3.386 inch
- Design: horizontal
- Type of Mounting: DIN-35 rail
- Marking Level: Center marking
- Insulating Material: Polyamide 66 (PA 66)
- Fire Load: 0.205 MJ
- Weight: 11.2 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918486453
- Customs Tariff No.: 85369010000
