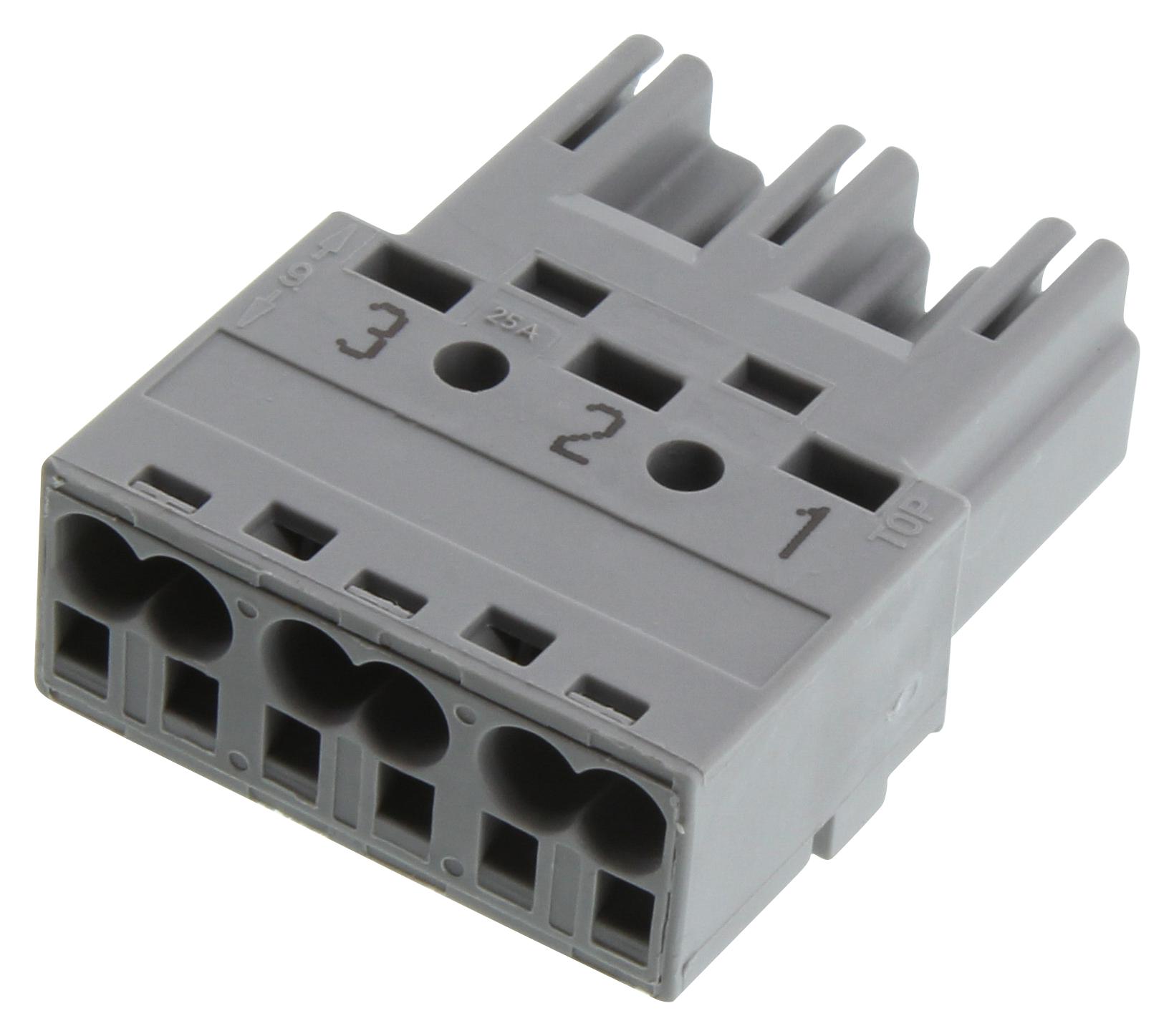

WAGO 770253 3-Pole Electrical Connector
The 770-253 is a gray, 3-pole plug with push-in CAGE CLAMP® technology, providing maintenance-free, mismatch-proof connections. It supports solid and stranded conductors, offers two-wire connections per pole for loops or bridges, and includes optional coding for easier circuit identification. Equipped with locking levers for secure attachment, this connector is suitable for low-voltage applications up to 600 V and 25 A current ratings. Its compact design ensures reliable, easy installation with clear markings, ideal for control and distribution systems in various industries.
WAGO 770253 3-Pole Electrical Connector Specifications:
- Color: Gray
- Number of Poles: 3
- Connection Technology: Push-in CAGE CLAMP® spring pressure
- Rated Voltage: 600 V
- Rated Current: 25 A
- Contact Resistance: Approx. 0.25 mΩ
- Connection Cross-Section: 0.5...4 mm² / 20...12 AWG
- Strip Length: 9 mm
- Material: Polyamide 66 (PA 66) housing, Chrome nickel spring steel spring
- Protection Type: IP20
- Operating Temperature: -5°C to +40°C, continuous operating temperature up to +85°C
- Locking Levers: Retrofittable, for secure locking
- Mismating Protection: Yes, fully protected when plugged correctly
- Number of Mating Cycles: Approx. 200
- Dimensions: Width 12.9 mm, Height 20 mm, Depth 37.5 mm
Buy the Buy WAGO 770-253 Plug 3-Pole Electrical Connector Online
Enhance your electrical system with the high-quality WAGO 770-253 3-pole connector. Designed for secure, maintenance-free connections, it features push-in technology and locking levers for quick installation. Suitable for low-voltage applications up to 600 V and 25 A current, this gray connector offers durable and reliable performance. Its compact, easy-to-handle design includes clear markings and optional coding for circuit identification, making it ideal for industrial control systems, distribution boards, and automation projects. Purchase online today for superior connection quality and installation convenience.
Order your WAGO 770-253 3-pole plug today and ensure reliable, maintenance-free connections for your control and distribution projects.
Frequently Asked Questions
Where can I buy WAGO 770253?
You can click on the BUY or RFQ button to purchase 770253 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 770253?
You can download the 770253 datasheet or visit the WAGO website for support.
Who is the manufacturer of 770253?
WAGO
