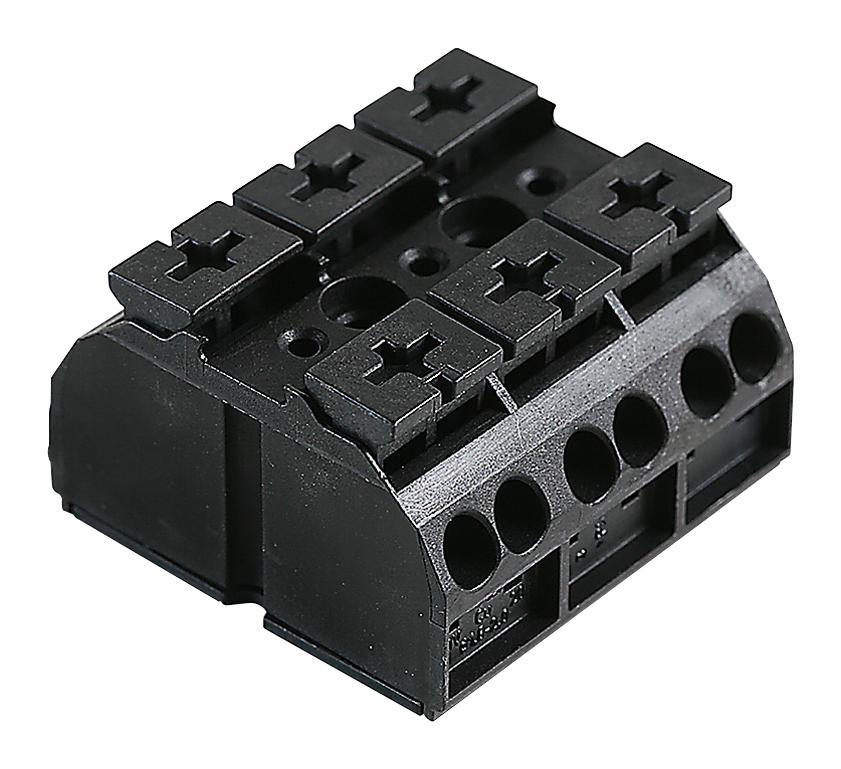

WAGO 862503 4-conductor Terminal Strip
The WAGO 862-503 is a robust 4-conductor chassis-mount terminal strip, ideal for applications requiring secure and reliable electrical connections. Designed with a 3-pole configuration, it accommodates a wide range of conductor sizes and materials, ensuring versatility in various industrial settings. The terminal strip utilizes WAGO’s innovative Push-in CAGE CLAMP® connection technology, simplifying the wiring process and enhancing operational efficiency. Its compact design and robust construction make it suitable for applications in control cabinets, machinery, and automation systems. The 862-503 is a dependable solution for establishing secure and organized electrical connections in demanding environments.
WAGO 862503 4-conductor Terminal Strip Specifications:
- Rated Voltage (III / 3): 500 V
- Rated Impulse Voltage (III / 3): 6 kV
- Rated Current: 32 A
- Connection Technology: Push-in CAGE CLAMP®
- Operating Tool: Push-button
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Solid Conductor, Push-in Termination: 0.75 … 4 mm² / 18 … 12 AWG
- Stranded Conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-Stranded Conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-Stranded Conductor with Ferrule with Plastic Collar: 0.5 … 2.5 mm² / 20 … 12 AWG
- Fine-Stranded Conductor with Ferrule, Push-in Termination, from: 0.75 mm² / 18 AWG
- Strip Length: 10 … 11 mm / 0.39 … 0.43 inch
- No. of Poles: 3
- Total Number of Connection Points: 12
- Total Number of Potentials: 3
- Type of Wiring: Side-entry wiring
- Pin Spacing: 12 mm / 0.472 inch
- Width: 36 mm / 1.417 inch
- Height from the Surface: 22.3 mm / 0.878 inch
- Depth: 35 mm / 1.378 inch
- Mounting Type: Screw mounting
- Marking: plain
- Fire Load: 0.383 MJ
- Weight: 20.5 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging Type: bag
- Country of Origin: DE
- GTIN: 4044918509008
- Customs Tariff No.: 85369010000
