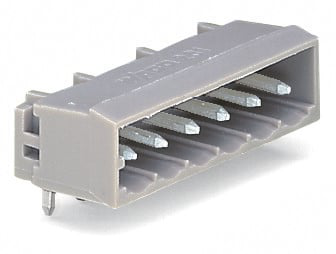

WAGO 231433001000 3-pole THT Header
The WAGO 231-433/001-000 is a versatile 3-pole THT (Through-Hole Technology) male header designed for secure and reliable PCB connections. Its angled design facilitates easy integration into various circuit board layouts. Constructed with durable polyamide 66 insulation and electrolytic copper contacts, this header offers excellent electrical performance and mechanical stability. It is suitable for a wide range of industrial applications, including power supplies, control panels, and automation systems. The header's robust design and multiple approvals ensure consistent performance and compliance with industry standards.
WAGO 231433001000 3-pole THT Header Specifications:
- Pin Spacing: 5 mm
- Number of Poles: 3
- Total Number of Potentials: 3
- Rated Voltage (III / 3): 320 V
- Rated Impulse Voltage (III / 3): 4 kV
- Rated Voltage (III / 2): 320 V
- Rated Impulse Voltage (III / 2): 4 kV
- Rated Voltage (II / 2): 630 V
- Rated Impulse Voltage (II / 2): 4 kV
- Rated Current: 12 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 10 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage per UL 1977 (factory wiring only): 600 V
- Rated Current per UL 1977 (factory wiring only): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 10 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Pin Cross-section: 1 x 1 mm
- Solder Pin Length: 3.8 mm
- Drilled Hole Diameter: 1.4 mm
- Material Group: I
- Insulating Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Contact Material: Electrolytic Copper (E Cu)
- Contact Plating: tin-plated
- Fire Load: 0.021 MJ
- Weight: 1.1 g
- Color: gray
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918866095
- Customs Tariff No.: 85366990990
