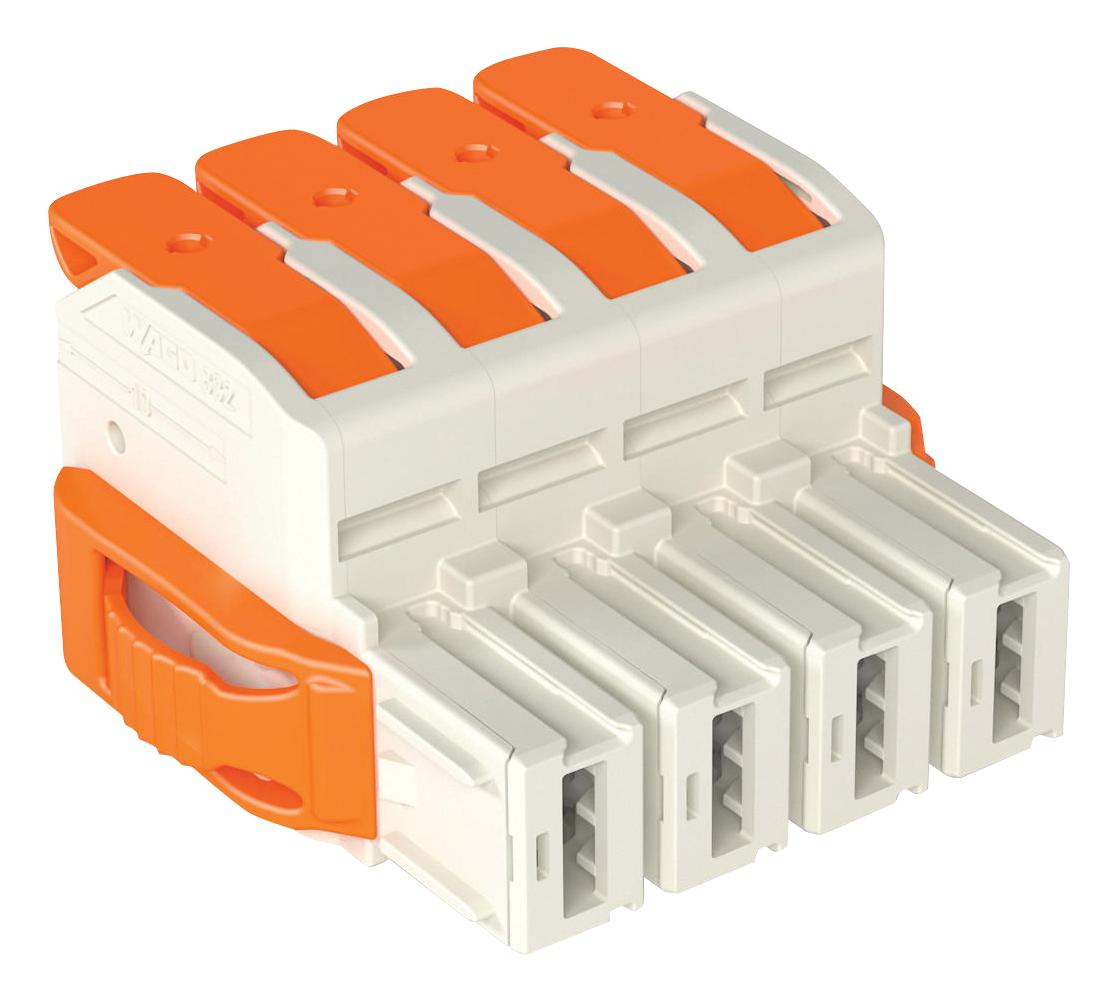

WAGO 8321103 Power Connector
The product is a pluggable PCB terminal connector with lever operation, designed for power electronics applications. It supports wire ranges up to 25 mm² (4 AWG), featuring Push-in CAGE CLAMP® technology for easy, tool-free, and reliable solid and ferruled conductor connections. The connector offers high current capacity, secure locking, and optional coding for quick identification and safety. Suitable for space-constrained panels, it ensures maximum flexibility and safe, maintenance-free wiring for power supplies, inverters, and servo drives.
WAGO 8321103 Power Connector Specifications:
- Rated voltage: 1000 V
- Conductor Range: 0.75 to 25 mm² (18-4 AWG)
- Current Capacity: Up to 47 A
- Pin Spacing: 10 mm to 75 mm depending on series
- Operation Type: Tool-free lever actuation
- Connection Technology: Push-in CAGE CLAMP®
- Housing Type: Straight or angled
- Applicable Standards: IEC/EN 60664-1, UL 61800-5-1 (details upon request)
- Protection Class: 100% protection against mis-mating
- Safety Features: Integrated protective contact caps, optional interlock
- Temperature Rating: Approximate operational range from -55°C to +105°C
- UL/CSA approval: Pending
Buy the WAGO Series 2616 Power Connector: 8321103
Secure your power electronics connections with the WAGO Power Connector. Featuring tool-free lever operation, Push-in CAGE CLAMP® technology, and support for up to 25 mm² conductors, this connector ensures fast, safe, and maintenance-free wiring. Its space-efficient design fits compact panels and high-density layouts, making it ideal for power supplies, inverters, and servo drives. Easy recoding and optional locking features provide additional safety and flexibility. Invest in dependable connectivity for your critical industrial applications today.
Buy WAGO 8321103 now and experience unmatched reliability and high-performance power connection for your industrial applications.
Frequently Asked Questions
Where can I buy WAGO 8321103?
You can click on the BUY or RFQ button to purchase 8321103 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 8321103?
You can download the 8321103 datasheet or visit the WAGO website for support.
Who is the manufacturer of 8321103?
WAGO
