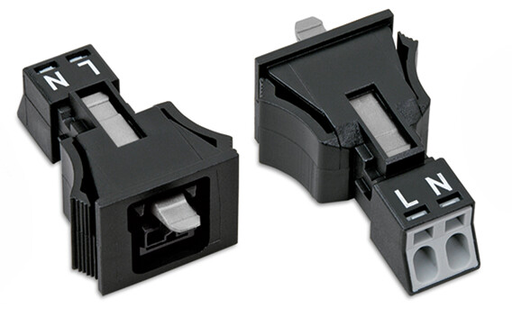

WAGO 890702 2-pole Snap-in Socket
The WAGO 890-702 is a 2-pole snap-in socket designed for secure and efficient electrical connections. Its compact design and push-in CAGE CLAMP® technology simplify installation, allowing for solid conductors to be easily inserted. The socket provides mismating protection through locking levers and is suitable for a wide range of industrial applications, including general mains applications. It complies with various standards and approvals, ensuring reliable performance and safety.
WAGO 890702 2-pole Snap-in Socket Specifications:
- Color: black
- Insulation material: Polyamide 66 (PA66)
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Copper or copper alloy (surface-treated)
- Nominal voltage (III/3): 250 V
- Rated surge voltage (III/3): 4 kV
- Rated current: 16 A
- Rated voltage UL: 600 V
- Rated current UL: 14 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1.5 mm²
- Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid conductor; push-in termination: 0.75 … 1.5 mm² / 20 … 16 AWG
- Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
- Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 20 AWG
- Strip length: 9 mm / 0.35 inch
- Pin spacing: 4.4 mm / 0.173 inch
- Width: 19.8 mm / 0.78 inch
- Height: 16 mm / 0.63 inch
- Depth: 39.85 mm / 1.569 inch
- Coding: A
- Mating force of a plug-in connection: approx. 20 … 70 N
- Retention force of a plug-in connection: > 80 N
- Unmating force of a plug-in connection: approx. 20 … 70 N
- Housing sheet thickness: 0.5 … 2 mm
- Mounting type: Snap-in
- Protection type: IP40
- Potential marking: L N
- Fire load: 0.109 MJ
- Weight: 4.6 g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
