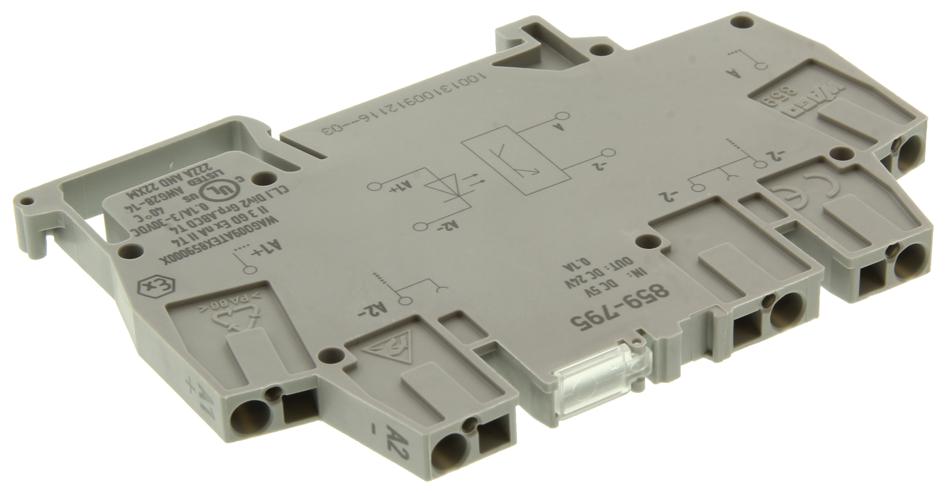

WAGO 859795 Optocoupler Module
The WAGO 859-795 optocoupler module is a robust solution for signal processing networks, providing electrical isolation between control and load circuits. With a nominal input voltage of 5VDC and an output voltage range of 3-30VDC, this module offers flexibility in various industrial applications. Its limiting continuous current of 0.1A and 2-wire connection make it suitable for a range of signal transmission needs. The module's CAGE CLAMP® connection technology ensures reliable and efficient connections, while its compact size (6mm width) allows for space-saving integration into DIN-35 rail mounted systems.
WAGO 859795 Optocoupler Module Specifications:
- Nominal input voltage: 5 VDC
- Input voltage range (low level): DC 0 … 0.8 V
- Input voltage range (high level): DC 2 … 6.25 V
- Nominal input current at UN: 17 mA
- Circuit type: 2-conductor termination
- Limiting continuous current: 0.1 A
- Nominal output voltage: DC 24 V
- Output voltage range: DC 3 … 30 V
- Max. voltage drop at output: ≤ DC 1 V
- Leakage current at nominal voltage: ≤ 25 µA
- Turn-on time: ≤ 10 µs
- Drop-out time: ≤ 50 µs
- Switching frequency: ≤ 10 kHz
- Dielectric strength, control/load circuit: 2.5 kVrms
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 56 mm / 2.205 inch
- Depth: 91 mm / 3.583 inch
- Surrounding air (operating) temperature: -40 … 70 °C
- Surrounding air (storage) temperature: -40 … 70 °C
- Processing temperature: -25 … +50 °C
- Standards/specifications: EN 60664-1; EN 61000-6-3; EN 61000-6-4; EN 50121-3-2; EN 61373; UL 508
- Product Group: 6 (Interface Electronics)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143606462
- Customs Tariff No.: 85365005000
