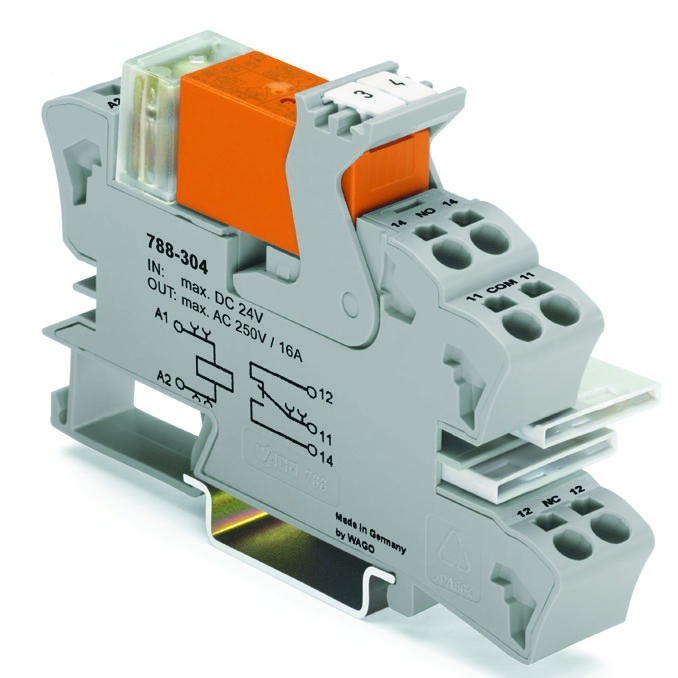

WAGO 788304 Relay Socket with Relay
The WAGO 788-304 relay socket provides a convenient and reliable solution for integrating small switching relays into industrial control systems. Designed for DIN rail mounting, it incorporates a pluggable LED module for status indication and a robust CAGE CLAMP® connection system, accommodating solid, stranded, and ultrasonically bonded wires. The socket facilitates rapid relay and status indication replacement, minimizing downtime and simplifying maintenance. Its insulated jumper system and adherence to safety standards like DIN VDE 0140 ensure safe and efficient operation in various industrial applications.
WAGO 788304 Relay Socket with Relay Specifications:
- Description: Socket with relay (1 changeover contact) and status indication
- Contact material: AgNi 90/10
- Input nominal voltage UN: DC 24 V
- Input voltage range: UN10 %
- Current input at UN(20 °C): 19 mA
- Max. switching voltage: AC 250 V
- Max. making current (resistive): 4 s (AC) 30 A (at 10 % continuous duty)
- Max. continuous current: 16 A (at 70°C continuous current 8 A, separated)
- Max. switching power (resistive): DC (see load limiting value graph)
- Max. number of switching operations: 6 min-1 / 1200 min-1
- Operating power: 400 mWtyp.
- Pull-in/dropout/bounce time: 7 ms / 3 ms / 3 ms (typ.)
- Operation at normal rating: 100 % continuous duty
- Dielectric strength (contact/coil): 5 kV
- Dielectric strength (open contact): 1 kV
- Mechanical life: 30 x 10^6 switching operations
- Degree of protection: IP 20
- Relay type: RT 1
- Ambient operating temperature: -25 °C ... +50 °C
- Storage temperature: -40 °C ... +70 °C
- Dimensions (WxHxD): (15x53x86) mm / (0.59x2.09x3.39) in
- Wire connection: CAGE CLAMP® S
- Wire size: 0,34-2,5 mm² / AWG 22-12
- Stripped length: 9-10 mm / 0.37 in
- Standards / prescriptions: DIN VDE 0140 Part1, DIN EN 61140
- Class of protection: II
- Approvals: CULUS
- UL508 / CSA22.2: 10 A
- Replacement Relay: 788-154 (for UL applications)
