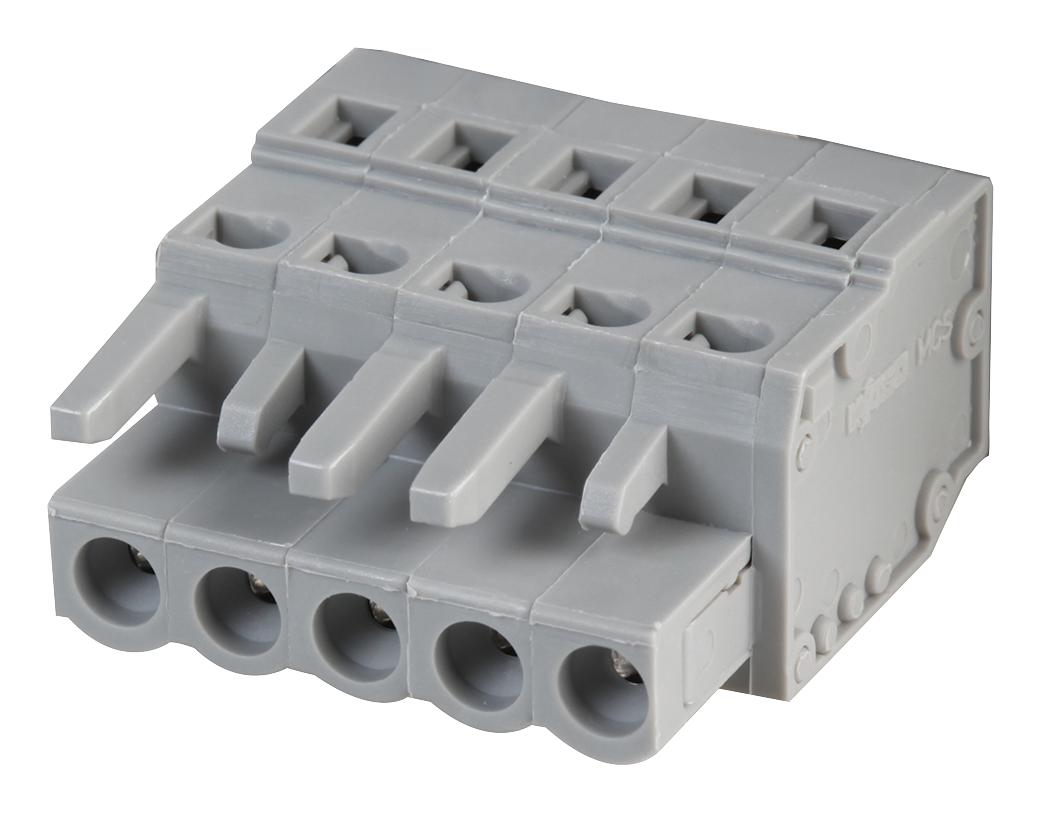

WAGO 231105026000 5 Pole Female Plug Connector
The WAGO 231-105/026-000 is a robust 5-pole female plug connector ideal for various industrial applications requiring secure and reliable power transmission. Its cage clamp connection simplifies wiring and reduces installation time, while the integrated fixing flanges provide mechanical stability. The connector's coding fingers prevent incorrect connections, enhancing system safety and reliability. It is suitable for use in control cabinets, machinery, and automation systems where a compact and dependable connection is essential.
WAGO 231105026000 5 Pole Female Plug Connector Specifications:
- Product Description: Female plug, 5 pole, pin spacing 5 mm / 0.197 in, with coding fingers, with integrated fixing flanges, cage clamp connection
- Packing Unit: 100 pieces
- Pin Spacing: 5 mm / 0.197 in
- Pole Count: 5
- Cross Section Range (mm²): 0.08 - 2.5
- Cross Section Range (AWG): 28 - 12 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage: 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 3
- Current Intensity: 16 A
- Weight: 9.16 g
- Color: grey
- Number of Connection Points: 5
- Number of Potentials: 5
- Height: 14.3 mm / 0.563 in
- Width: 26.5 mm / 1.043 in
- Depth: 26.45 mm / 1.041 in
- Strip Length: 8 - 9 mm / 0.33 in
- Approval ABS: 04-HG469925-PDA
- Approval BV: 11915/A0
- Approval CCA: 5764
- Approval CSA: 154112-1466354
- Approval DEMKO: 88126
- Approval GL: 17296-00HH
- Approval KEMA: 2083746.02
- Approval KR: HMB05880-EL003
- Approval LR: 96/20035
- Approval RMR: 11130002
- Approval UR: E45171
- Approval UR2: E45172
