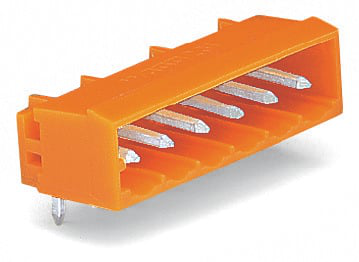

WAGO 231534001000 4-pole THT Header
The WAGO 231-534/001-000 is a robust 4-pole THT male header suitable for a wide range of industrial applications requiring secure and reliable PCB connections. Its angled solder pins facilitate easy integration into PCB designs, while the 5.08mm pin spacing ensures compatibility with standard component layouts. The header is designed for horizontal or vertical mounting and includes coding fingers for enhanced identification and error prevention. It is rated for 320V and 12A, and is certified by UL, CSA, and KEMA, ensuring compliance with industry standards. The header's polyamide 66 (PA 66) construction provides excellent insulation and flame retardancy (V0 rating).
WAGO 231534001000 4-pole THT Header Specifications:
- Pin Spacing: 5.08 mm
- Number of Poles: 4
- Total Number of Potentials: 4
- Rated Voltage (III / 3): 320 V
- Rated Impulse Voltage (III / 3): 4 kV
- Rated Voltage (II / 2): 630 V
- Rated Impulse Voltage (II / 2): 4 kV
- Rated Current: 12 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 10 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage per UL 1977 (factory wiring only): 600 V
- Rated Current per UL 1977 (factory wiring only): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 10 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Pin Cross-section: 1 x 1 mm
- Width: 18.36 mm
- Height: 12.2 mm
- Height from the surface: 8.4 mm
- Depth: 12 mm
- Solder Pin Length: 3.8 mm
- Solder Pin Dimensions: 1 x 1 mm
- Drilled Hole Diameter: 1.4 mm (tolerance -0.1)
- Contact Material: Electrolytic Copper (E Cu)
- Contact Plating: Tin-plated
- Insulating Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Color: orange
- Material Group: I
- Fire Load: 0.026 MJ
- Weight: 1.4 g
- Pin Spacing Unit: mm
- Width Unit: mm
- Height Unit: mm
- Depth Unit: mm
