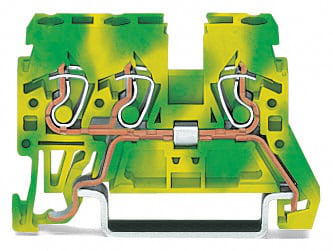

WAGO 870687 3-conductor ground terminal block
The WAGO 870-687 is a robust and reliable 3-conductor ground terminal block suitable for various industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it offers a secure and organized solution for grounding connections. The CAGE CLAMP® connection ensures a tight and vibration-resistant connection, while the green-yellow color coding simplifies identification and enhances safety. This terminal block is ideal for use in control cabinets, machinery, and other electrical systems where reliable grounding is essential.
WAGO 870687 3-conductor ground terminal block Specifications:
- Color: green-yellow
- Insulation material: Polyamide (PA66)
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height: 49 mm / 1.929 inch
- Depth from upper edge of DIN-rail: 27.5 mm / 1.083 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
- Fire load: 0.093 MJ
- Weight: 7.3 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454094607
- Customs tariff number: 85369010000
- Max insulation diameter: 4.4 mm
