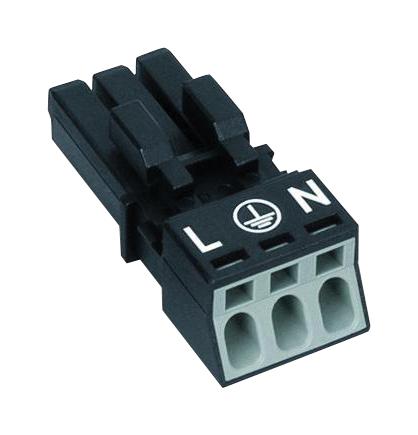

WAGO 890203 3-Pole Socket Connector
The WAGO 890-203 socket connector is designed for reliable and maintenance-free connections. Utilizing the innovative Push-in CAGE CLAMP® spring pressure connection technology, it allows for simple and secure termination of solid conductors. Its compact design with a 4.4 mm pole spacing makes it ideal for space-constrained applications. The connector is protected against mismating and offers a robust solution for various industrial environments, suitable for general mains applications and complying with IP40 standards when combined with a strain relief housing. It is factory-equipped with locking levers for secure plug-in connections.
WAGO 890203 3-Pole Socket Connector Specifications:
- Color: black
- Insulation Material: Polyamide 66 (PA66)
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Copper or copper alloy (surface-treated)
- Nominal Voltage (III/3): 250 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Current: 16 A
- Rated Voltage UL: 600 V
- Rated Current UL: 14 A
- Connection Technology: Push-in CAGE CLAMP®
- Nominal Cross-Section: 1.5 mm²
- Solid Conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid Conductor; Push-in Termination: 0.75 … 1.5 mm² / 20 … 16 AWG
- Stranded Conductor: 0.25 … 1 mm² / 22 … 18 AWG
- Fine-Stranded Conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-Stranded Conductor; with Insulated Ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-Stranded Conductor; with Uninsulated Ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-Stranded Conductor; with Ferrule; Push-in Termination: 0.75 mm² / 20 AWG
- Strip Length: 9 mm / 0.35 inch
- Pole No.: 3
- Total Number of Connection Points: 3
- Total Number of Potentials: 3
- Conductor Entry Direction to Mating Direction: 0 °
- Pin Spacing: 4.4 mm / 0.173 inch
- Width: 15 mm / 0.591 inch
- Height: 11.7 mm / 0.461 inch
- Depth: 34.1 mm / 1.343 inch
- Coding: A
- Mating Force of a Plug-in Connection: approx. 20 … 70 N
- Retention Force of a Plug-in Connection: > 80 N
- Unmating Force of a Plug-in Connection: approx. 20 … 70 N
- Number of Mating Cycles: 200 (without resistive load)
- Potential Marking: L N
- Protection Type: IP20
- Note on Protection Type: IP40 with strain relief housing
- Application: General mains applications
- Fire Load: 0.072 MJ
- Weight: 3.8 g
- Processing Temperature: -5 … +40 °C
- Continuous Operating Temperature: -35 … +85 °C
- Product Group: 20 (WINSTA)
- Packaging Type: BOX
- Country of Origin: PL
- GTIN: 4055143548519
- Customs Tariff Number: 85366990990
- Contact Resistance: approx. 1 mΩ
- Contact Transition Plug/Socket Resistance: approx. 0.25 mΩ
