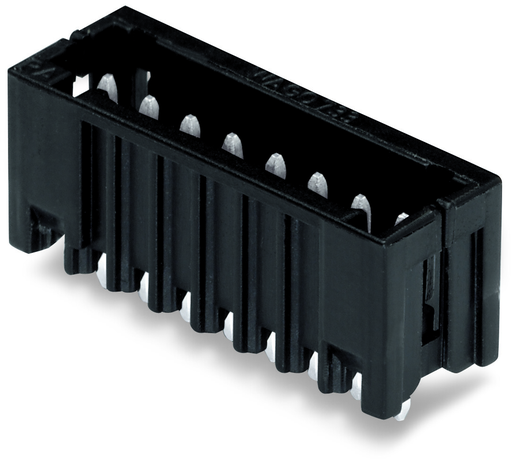

WAGO 733332105604 THR Male Header Connector
The WAGO 733-332/105-604 is a THR (Through-Hole Reflow) male header specifically engineered for surface mount technology (SMT) applications. Its design incorporates a pin enclosure to optimize thermal penetration, reducing soldering temperatures. The 100% mismating protection ensures reliable connections, and coding fingers allow for easy identification and organization. This connector is ideal for applications requiring robust and automated PCB assembly, offering a secure and efficient connection solution.
WAGO 733332105604 THR Male Header Connector Specifications:
- rated_voltage_III_3: 80 V
- rated_impulse_voltage_III_3: 2.5 kV
- rated_voltage_III_2: 160 V
- rated_impulse_voltage_III_2: 2.5 kV
- rated_voltage_II_2: 320 V
- rated_impulse_voltage_II_2: 2.5 kV
- rated_current: 6 A
- no_of_poles: 2
- total_number_of_potentials: 2
- number_of_connection_types: 1
- number_of_levels: 1
- pin_spacing: 2.5 mm
- width: 7.5 mm
- height: 11.3 mm
- height_from_surface: 8.9 mm
- depth: 7.8 mm
- solder_pin_length: 2.4 mm
- solder_pin_dimensions: 0.8 x 0.8 mm
- contact_type: Male connector/plug
- connector_connection_type: for PCBs
- mismating_protection: Yes
- mating_direction_to_pcb: 90 °
- pcb_contact: THR
- number_of_solder_pins_per_potential: 1
- color: black
- insulating_material: Polyphthalamide (PPA GF)
- flammability_class_ul94: V0
- contact_material: Electrolytic copper (E Cu)
- contact_plating: tin-plated
- fire_load: 0.009 MJ
- weight: 0.4 g
- limit_temperature_range: -60 … +100 °C
- packaging_type: BOX
- country_of_origin: DE
- gtin: 4045454676070
- customs_tariff_no: 85366990990
