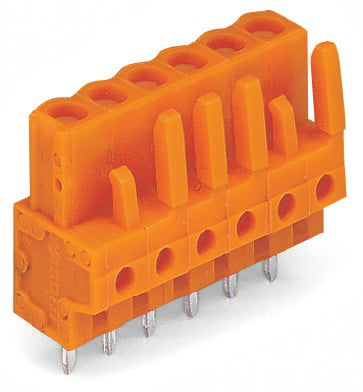

WAGO 232166 Female Plug Connector
The WAGO 232-166 female plug connector is a versatile component within WAGO's Multi Conn. System. Designed with a 5.08mm pin spacing and straight solder pins, it facilitates robust and reliable connections in diverse industrial environments. The connector's orange color and coding fingers enhance visual identification and prevent mismating. It supports a wide range of voltage and current ratings, making it suitable for various power transmission applications. Its compact dimensions (18.25mm height, 31.98mm width, 11.6mm depth) allow for efficient space utilization in control cabinets and equipment. The connector is approved by numerous agencies including ABS, BV, and UL, ensuring compliance with industry standards.
WAGO 232166 Female Plug Connector Specifications:
- Product Description: FEMALE PLUG; WITH STRAIGHT SOLDER PIN; 6 POLE; PIN SPACING 5.08 MM / 0.2 IN; SOLDER PIN 0.6x1 MM; WITH CODIG FINGERS
- Packing Unit: 50 pieces
- Pin Spacing: 5.08 mm / 0.2 in
- Pole Count: 6
- Measured Voltage EN: 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 3
- Current Intensity EN: 12 A
- Weight: 5.45 g
- Color: orange
- No. of Connection Points: 6
- No. of Potentials: 6
- Height: 18.25 mm / 0.719 in
- Width: 31.98 mm / 1.259 in
- Depth: 11.6 mm / 0.457 in
- Cross Section: 0.8-2.5 mm²
- Voltage ABS: 250 V
- Current ABS: 12 A
- Approval No. ABS: 04-HG469925-PDA
- Voltage BV: 400 V
- Current BV: 16 A
- Cross Section BV: 2.5 mm²
- Approval No. BV: 11915/A0
- Voltage CCA: 250 V
- Current CCA: 12 A
- Cross Section CCA: 0.6x1 mm
- Approval No. CCA: 5764
- Voltage CSA: 300 V
- Current CSA: 15 A
- Cross Section CSA: 0.6x1 mm
- Approval No. CSA: 154112-1466354
- Voltage DEMKO: 250 V
- Current DEMKO: N/A
- Cross Section DEMKO: 2.5 mm²
- Approval No. DEMKO: 88126
- Voltage GL: 250 V
- Current GL: 12 A
- Cross Section GL: 0.8-2.5 mm²
- Approval No. GL: 17296-00HH
- Voltage KEMA: 250 V
- Current KEMA: 12 A
- Cross Section KEMA: 0.6x1 mm
- Approval No. KEMA: 2083746.02
- Voltage KR: 250/400 V
- Current KR: 12/16 A
- Cross Section KR: 2.5 mm²
- Approval No. KR: HMB05880-EL003
- Voltage LR: 250 V
- Current LR: 12 A
- Cross Section LR: 0.8-2.5 mm²
- Approval No. LR: 96/20035
- Voltage NEMKO: 250 V
- Current NEMKO: N/A
- Cross Section NEMKO: 2.5 mm²
- Approval No. NEMKO: P94101840
- Voltage RMR: 250 V
- Current RMR: 12 A
- Cross Section RMR: 0.8-2.5 mm²
- Approval No. RMR: 11130002
- Voltage UR: 300 V
- Current UR: 15 A
- Cross Section UR: N/A
- Approval No. UR: E45172
