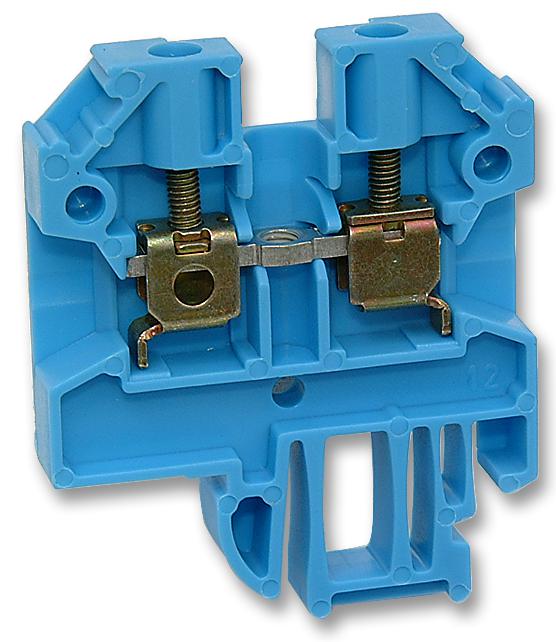

Weidmuller 012838SAK4 feed-through terminal block
The SAK 4 BL is a high-reliability feed-through terminal designed with screw connections, rated at 4 mm² cross-section capacity. Made from flame-retardant PA 66 in blue, it features excellent electrical performance with a maximum voltage of 550V in explosion-tested versions and up to 800V rated for factory wiring with twin wire-end ferrules. It is UL, IECEx, and ATEX certified, suitable for industrial electrical installations with robust construction, compact dimensions of 6.5 mm width, 40 mm height, and 51.5 mm depth. The terminal supports easy snap-on mounting on TS 32 rails, with a maximum clamping torque of 0.5 Nm for secure connections.
Weidmuller 012838SAK4 feed-through terminal block Specifications:
- Width: 6.5mm (0.256 inch)
- Height: 40mm (1.575 inch)
- Depth: 51.5mm (2.028 inch)
- Material: PA 66, Flame rating: UL 94 V-2
- Rated voltage: 550V (explosion-tested), 800V (factory wiring)
- Rated current: 28A (explosion-tested), 32A (factory wiring)
- Wire cross section: max 4 mm², min 0.13 mm²
- Connection: Screw connection, M3 screw, tightening torque 0.5 Nm
- Number of potentials: 1, clamping points per level: 2
- Mounting: Rails TS 32, snap-on type
- Operating temperature range: -50°C to +100°C
- Compliance: IECEx, ATEX, UL, CSA certifications
Buy the Weidmieller SAK 4 BL – Reliable Feed-Through Terminal for Industrial Applications
Purchase the Weidmieller SAK 4 BL online today—engineered for dependable electrical connections with screw terminals rated at 4 mm². It is UL, IECEx, and ATEX certified, ensuring safety and compliance for industrial wiring. Its compact design measures 6.5 mm wide, 40 mm high, and 51.5 mm deep, fitting easily onto TS 32 DIN rails. Made from flame-retardant PA 66, this terminal provides secure clamping with a torque of 0.5 Nm. Ideal for industrial automation, control panels, and safety systems, it ensures long-lasting, reliable performance in tough environments.
Get Weidmieller SAK 4 BL today—built for reliable, secure electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy Weidmuller 012838SAK4?
You can click on the BUY or RFQ button to purchase 012838SAK4 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part 012838SAK4?
You can download the 012838SAK4 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of 012838SAK4?
Weidmuller
