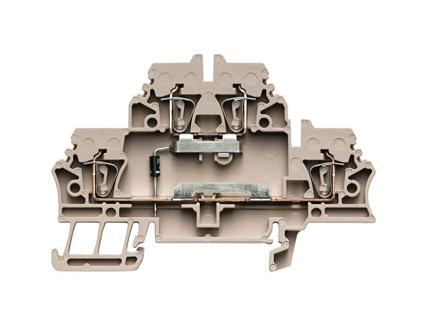

WEIDMULLER 1690020000 Component Terminal
The ZDK 2.5/D/1 is a versatile double-tier component terminal with tension clamp technology, rated for 2.5 mm² cross-section. Its durable dark beige plastic housing features a spring connection system suitable for various conductor types. Designed for reliable electrical connections, this terminal supports a maximum wire size of 2.5 mm², with flexible conductors ranging from 0.05 mm² to 2.5 mm². Suitable for industrial automation, its robust construction ensures stable performance across temperatures from -25°C to 120°C, conforming to IEC 60947-7-1 standards and UL certifications.
WEIDMULLER 1690020000 Component Terminal Specifications:
- Rated cross-section: 2.5 mm²
- Dimensions: Width 5.1mm, Height 79.1mm, Depth 53mm, Weight 10.64g
- Material: Wemid, Flammability rating V-0, Color: dark beige
- Temperature range: -25°C to 120°C, Storage max: 55°C, min: -25°C
- Rated voltage: 500 V, Rated current: 10A, UL 94V-0 flammability
- Number of potentials: 1, Levels: 2, Clamping points per level: 2
- Wire cross-section range: 0.05 mm² to 2.5 mm², Interchangeable with wire-end ferrules
- Conductor sizes: min. 26 AWG, max. 14 AWG, Max wire size: 2.5 mm²
- Standards: IEC 60947-7-1, UL 61010-1, CSA certified
- Connection type: Tension clamp, Snap-on mounting, Open sides for easy access
- Explosion tested, Diode included, One end without connector for plug-in cross-connection
Buy the Weidmueller 1690020000 – Reliable Industrial Component Terminal for Automation Applications
Purchase the Weidmueller Component Terminal 1690020000 online today to ensure secure, flexible, and long-lasting electrical connections. Engineered with tension clamp technology, this terminal supports a cross-section of 2.5 mm² and is suitable for industrial automation. Its durable plastic housing, rated for up to 120°C, makes it ideal for various temperature conditions. With UL and CSA certifications, easy snap-on mounting, and compatibility with wire sizes from 26 to 14 AWG, this product provides reliable performance for complex electrical systems. Order now for quick delivery.
Get Weidmueller 1690020000 today—engineered for robust performances in industrial wiring and automation environments.
Frequently Asked Questions
Where can I buy WEIDMULLER 1690020000?
You can click on the BUY or RFQ button to purchase 1690020000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1690020000?
You can download the 1690020000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1690020000?
WEIDMULLER
