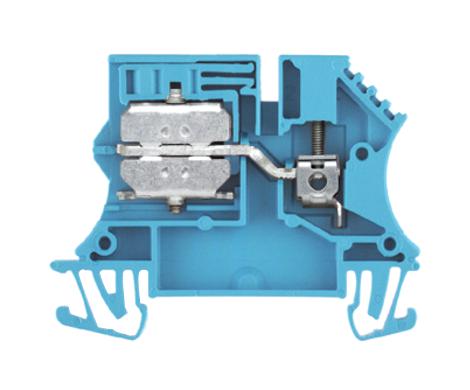

WEIDMULLER 1010680000 Neutral Conductor Terminal Block
The Weidmuller WNT 2.5 10X3 is a neutral conductor disconnect terminal block specifically engineered for building installations utilizing a 10x3 copper rail system. It provides a coordinated solution for distribution, offering a secure and reliable connection point for neutral conductors. Constructed from Wemid material with a V-0 flammability rating, this terminal block ensures safety and durability. It is designed for easy integration into TS 35 rails and is ideal for applications requiring robust and organized electrical distribution within buildings. The block supports a rated current of 24A and a rated voltage of 400V, making it suitable for a wide range of electrical systems.
WEIDMULLER 1010680000 Neutral Conductor Terminal Block Specifications:
- Width: 5.1 mm
- Height: 60 mm
- Depth: 46.5 mm
- Depth_including_DIN_rail: 47 mm
- Width_inches: 0.201 inch
- Height_inches: 2.362 inch
- Depth_inches: 1.831 inch
- Net_weight: 12.61 g
- Storage_temperature_max: 55 °C
- Storage_temperature_min: -25 °C
- Continuous_operating_temp_max: 120 °C
- Continuous_operating_temp_min: -50 °C
- Material: Wemid
- UL_94_flammability_rating: V-0
- Colour: blue
- Version: Neutral conductor disconnect terminal, Busbar connection
- Number_of_potentials: 1
- Number_of_clamping_points_per_level: 1
- Levels_cross_connected_internally: No
- Rail: TS 35
- PE_function: No
- End_cover_plate_required: Yes
- Number_of_levels: 1
- Number_of_potentials_per_tier: 1
- PE_connection: No
- N_function: Yes
- PEN_function: No
- Open_sides: right
- Explosion_tested_version: No
- Number_of_similar_terminals: 1
- Type_of_mounting: Snap-on
- Installation_advice: Busbar
- Certificate_No_CSA: 12400-116
- Voltage_size_C_CSA: 600 V
- Wire_cross_section_min_CSA: 26 AWG
- Current_size_C_CSA: 20 A
- Wire_cross_section_max_CSA: 12 AWG
- Conductor_cross_section_flexible_plus_collar: 2.5 mm²
- Blade_size: 0.6 x 3.5 mm
- Clamping_range_min: 0.13 mm²
- Connection_cross_section_stranded_max: 4 mm²
- Connection_direction: on side
- Number_of_connections: 1
- Tightening_torque_max: 0.6 Nm
- Torque_level_with_DMS_electric_screwdriver: 1
- Wire_connection_cross_section_AWG_max: AWG 12
- Wire_connection_cross_section_finely_stranded_max: 4 mm²
- Wire_connection_cross_section_ferrules_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_max: 4 mm²
- Clamping_range_max: 4 mm²
- Clampingscrew: M 2.5
- Connection_cross_section_stranded_min: 1.5 mm²
- Gauge_to_IEC_60947_1: A3
- Strippinglength: 10 mm
- Tightening_torque_min: 0.4 Nm
- Type_of_connection: Busbar connection
- Wire_connection_cross_section_AWG_min: AWG 26
- Wire_connection_cross_section_ferrules_max: 2.5 mm²
- Wire_connection_cross_section_finely_stranded_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_min: 0.5 mm²
- Cross_disconnect: without
- Slitting: sliding
- For_N_busbar: 10 x 3 mm
- Rated_cross_section: 2.5 mm²
- Rated_current: 24 A
- Standards: In accordance with IEC 60947-7-1
- Power_loss_IEC_60947_7_x: 0.77 W
- Pollution_severity: 3
- Rated_voltage: 400 V
- Current_at_maximum_wires: 32 A
- Volume_resistance_IEC_60947_7_x: 1.33 mΩ
- Rated_impulse_withstand_voltage: 6 kV
- Certificate_No_UR: E60693
- Conductor_size_Factorywiringmin_UR: 26 AWG
- Conductor_size_Field_wiringmin_UR: 22 AWG
- Voltage_size_C_UR: 600 V
- Conductor_size_Factorywiringmax_UR: 12 AWG
- Conductor_size_Field_wiringmax_UR: 12 AWG
- Current_size_C_UR: 25 A
- ETIM_6.0: EC000902
- eClass_9.0: 27-14-11-26
- eClass_10.0: 27-14-11-26
- ETIM_7.0: EC000902
- eClass_9.1: 27-14-11-26
- UNSPSC: 30-21-18-11
- Approval/Certificate/Document_of_Conformity: EAC certificate, DNVGL certificate, Lloyds Register Certificate, MARITREG Certificate, POLSKIREJ certificate, Declaration of Conformity
- Brochure/Catalogue: CAT 1 TERM 16/17 EN
- EngineeringData: EPLAN, WSCAD, Zuken E3.S, STEP
- User_Documentation: StorageConditionsTerminalBlocks
- Safety_notice: Safety Information
