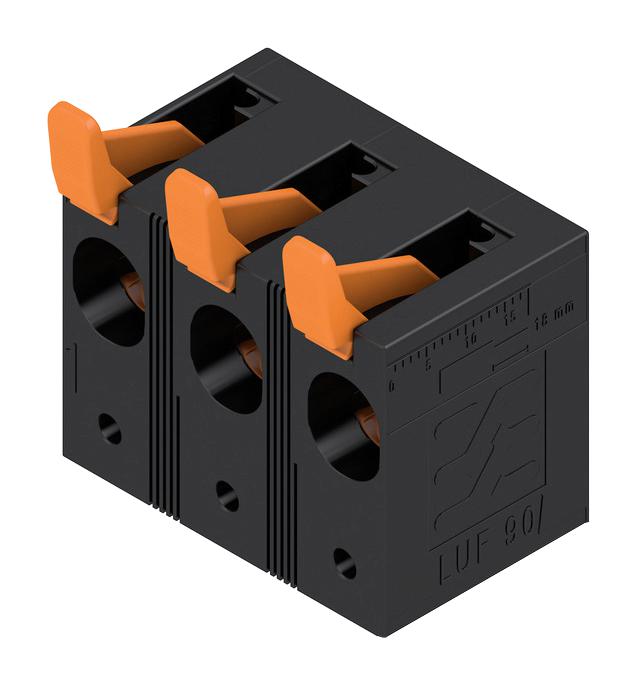

WEIDMULLER 2492010000 Power Terminal Block
The Weidmuller OMNIMATE Power series LU LUF 15.00/03/90V 5.0SN BK BX terminal block provides a sturdy, direct connection for demanding power electronics applications. Designed for extreme current and voltage requirements, it's suitable for solar inverters, frequency converters, servo-controllers, and power supplies. It features a PUSH IN connection with an actuator, a clamping range up to 16 mm², and is constructed with Wemid (PA) insulating material for reliable performance. The block is rated for high voltage and current, ensuring safe and efficient power distribution in industrial settings.
WEIDMULLER 2492010000 Power Terminal Block Specifications:
- Type: LUF 15.00/03/90V 5.0SN BK BX
- Order No.: 2492010000
- Version: Printed circuit board terminals, 15.00 mm
- Number of poles: 3
- Solder pin length (l): 5 mm
- GTIN(EAN): 4050118604283
- Qty.: 30pc(s).
- Product data (IEC): 1000 V / 68 A / 0.5 - 16 mm²
- Product data (UL): 600 V/58 A/AWG 18 - AWG 6
- Width: 41.58 mm
- Height: 47.03 mm
- Height of lowest version: 42.03 mm
- Depth (inches): 1.041 inch
- Width(inches): 1.637 inch
- Height(inches): 1.852 inch
- Depth: 26.45 mm
- Net weight: 36.28 g
- Pitch in mm(P): 15 mm
- Solderpin length(l): 5 mm
- Solder eyelet hole diameter(D): 1.7 mm
- Number of solderpinsperpole: 2
- Strippinglength: 18 mm
- L1 in inches: 1.181 inch
- Touch-safe protection: DIN VDE 57 106
- Wire connection method: PUSH IN with actuator
- Conductor outlet direction: 90°
- Pitch in inches(P): 0.591 inch
- Fitted bycustomer: No
- Solderpin dimensions: d = 1.2 mm, Octagonal
- Solder eyelet hole diameter tolerance(D): + 0,1 mm
- Screwdriver blade: 0.8 x 4.0
- L1 in mm: 30 mm
- Insulatingmaterial: Wemid(PA)
- Colour of operational elements: orange
- Comparative Tracking Index (CTI): ≥ 600
- UL 94 flammabilityrating: V-0
- Storage temperature,min.: -40 °C
- Operating temperature, min.: -40 °C
- Clampingrange,min.: 0.5 mm²
- Clampingrange,max.: 16 mm²
- Wire connection cross section AWG, min.: AWG 18
- Wire connection cross section AWG, max.: AWG 4
- Solid,min. H05(07)V-U: 0.5 mm²
- Solid,max. H05(07)V-U: 16 mm²
- Stranded,min. H07V-R: 10 mm²
- Stranded,max. H07V-R: 16 mm²
- Flexible,min. H05(07)V-K: 0.5 mm²
- Flexible,max. H05(07)V-K: 16 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, max.: 16 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.: 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.: 16 mm²
- Rated current, min. number of poles (Tu=20°C): 68 A
- Rated current, min. number of poles (Tu=40°C): 62 A
- Rated voltage for surge voltage class / pollution degree II/2: 1,000 V
- Rated voltage for surge voltage class / pollution degree III/3: 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree III/2: 8 kV
- Rated current, max. number of poles (Tu=20°C): 63 A
- Rated current, max. number of poles (Tu=40°C): 55 A
- Rated voltage(UsegroupB/CSA): 600 V
- Rated voltage(UsegroupD/CSA): 600 V
- Rated current(UsegroupC/CSA): 58 A
- Wire cross-section, AWG, min.: AWG 18
