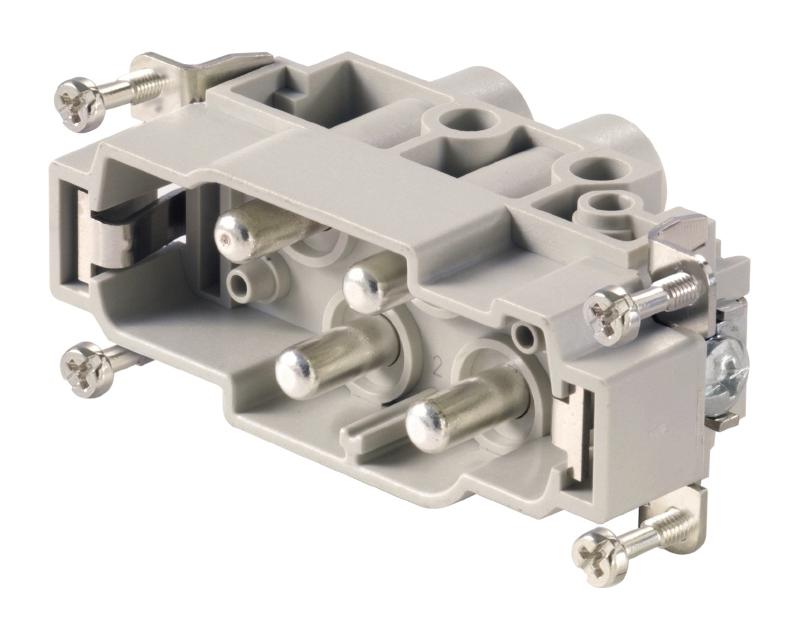

WEIDMULLER 1023220000 Industrial Power Connector
The HDC S4/0 MS insert is a robust connector designed for high current and voltage transmission in industrial applications. It features a screw connection for secure wiring, rated for 80 A and 830 V, making it suitable for power distribution and control systems. The connector's compact size (34mm width, 42mm height, 84.5mm depth) and silver passivated copper alloy contacts ensure reliable electrical performance with up to 2500 plugging cycles. Its rated temperature range of -40°C to 125°C and compliance with REACH and RoHS standards underline durability and environmental safety.
WEIDMULLER 1023220000 Industrial Power Connector Specifications:
- Dimensions: Width 34mm, Height 42mm, Depth 84.5mm
- Weight: 1099g
- Rated current: 80A
- Rated voltage: 830V (DIN EN 61984), 600V (UL/CSA)
- Temperature range: -40°C to +125°C
- Conductor cross-section: Max 16 mm², Min 0.5 mm²
- Wire cross-section: Max AWG 6, Min AWG 20
- Insulating material: PC glass-fibre reinforced
- Contact material: Copper alloy, silver passivated
- Clamping range: Max 16 mm², Min 1.5 mm²
- Connection type: Screw connection with M5 fixing screw
- Rated impulse voltage: 8 kV
- Certification: RoHS, REACH, UL/CSA
Buy the Weidmueller HDC S4/0 MS – Reliable Power Connector for Industrial Applications
Secure your power connections with the Weidmueller HDC S4/0 MS connector, engineered for high current and voltage applications. Features a screw connection for ease of wiring, rated for 80 A and 830 V, with durable copper contacts that ensure long-term reliable performance. Compact and lightweight, it withstands up to 2500 plug cycles, making it perfect for industrial automation and power distribution. Ideal for professionals needing robust, safe, and efficient electrical connectors for demanding environments. Purchase online today for seamless integration into your projects.
Buy Weidmueller HDC S4/0 MS now and experience unmatched reliability and performance in power system connectivity and industrial automation.
Frequently Asked Questions
Where can I buy WEIDMULLER 1023220000?
You can click on the BUY or RFQ button to purchase 1023220000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1023220000?
You can download the 1023220000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1023220000?
WEIDMULLER
