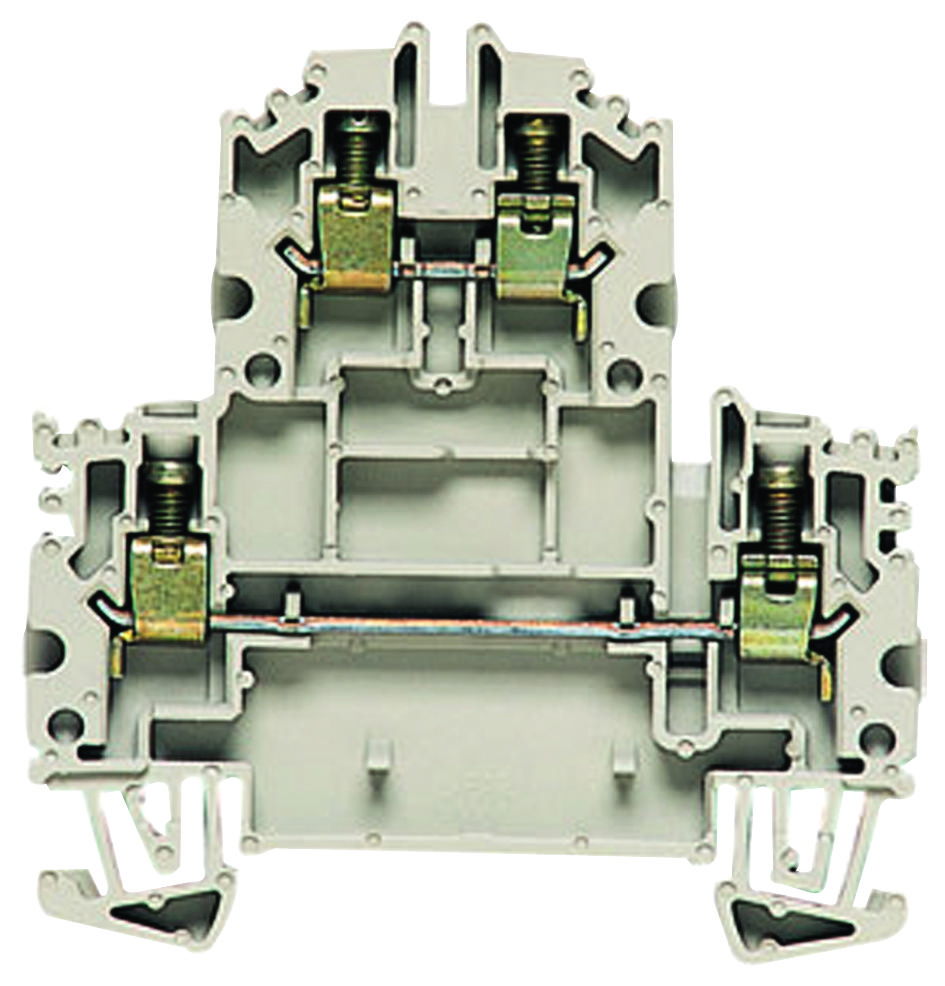

WEIDMULLER 1041900000 WDK 4N Terminal Block

WEIDMULLER 1041900000 WDK 4N Terminal Block Specifications:

• Type: WDK 4N
• Order No.: 1041900000
• Version: Double-tier terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige
• Width: 6.1 mm
• Height: 60 mm
• Depth: 63.25 mm
• Depth including DIN rail: 64.15 mm
• Width(inches): 0.24 inch
• Height(inches): 2.362 inch
• Depth(inches): 2.49 inch
• Net weight: 12.11 g
• Operating temperature range: For operating temperature see EC Design Test Certificate / IEC Ex-Certificate of Conformity
• Storage temperature,min.: 10 °C
• Continuous operating temp., min.: -60 °C
• Storage temperature, max.: 40 °C
• Continuous operating temp., max.: 130 °C
• Material: Wemid
• UL 94 flammability rating: V-0
• Colour: dark beige
• Certificate No.(ATEX): DEMKO15ATEX1346U
• Max. voltage(ATEX): 550 V
• Wire cross section max.(ATEX): 6 mm²
• Current(IECEX): 30 A
• Ex 2014/34/EU label: II 2 G D
• Certificate No.(IECEX): IECEXULD15.0003U
• Current(ATEX): 30 A
• Max. voltage(IECEX): 550 V
• Wire cross section max.(IECEX): 6 mm²
• Marking EN 60079-7: Ex eb II C Gb
• Number of potentials: 2
• Number of clamping points per level: 2
• Levels cross-connected internally: No
• Rail: TS 35
• PE function: No
• End cover plate required: Yes
• Number of levels: 2
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Wire connection cross section, finely stranded,two clampable wires,min.: 0.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 0.5 mm²
• Wire cross-section, finely stranded, two clampable wires,max.: 1.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 1.5 mm²
• Explosion-tested version: Yes
• Number of similar terminals: 1
• Type of mounting: Snap-on
• Rated cross-section: 4 mm²
• Rated current: 32 A
• Standards: IEC 60947-7-1
• Power loss in accordance with IEC 60947-7-x: 1.02 W
• Pollution severity: 3
• Rated voltage: 800 V
• Current at maximum wires: 35 A
• Volume resistance according to IEC 60947-7-x: 2 mΩ
• Rated impulse withstand voltage: 8 kV
• Certificate No.(CSA): 200039-1057876
• Current size D(CSA): 5 A
• Voltage size D(CSA): 600 V
• Wire cross section min. (CSA): 26 AWG
• Current size C(CSA): 30 A
• Voltage size C(CSA): 300 V
• Wire cross section max.(CSA): 10 AWG
• Blade size: 0.6 x 3.5 mm
• Clampingrange,min.: 0.13 mm²
• Connection cross-section, stranded,max.: 6 mm²
• Tighteningtorque,max.: 1 Nm
• Torque level with DMS electric screwdriver: 2
• Wire connection cross section AWG,max.: AWG 12
• Wire connection cross section, finely stranded, max.: 4 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 6 mm²
• Clampingrange,max.: 6 mm²
• Clampingscrew: M 3
• Connection cross-section, stranded, min.: 1.5 mm²
• Gauge to IEC 60947-1: A4
• Strippinglength: 8 mm
• Tighteningtorque,min.: 0.5 Nm
• Type of connection: Screw connection
• Wire connection cross section AWG,min.: AWG 26
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 4 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 4 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
