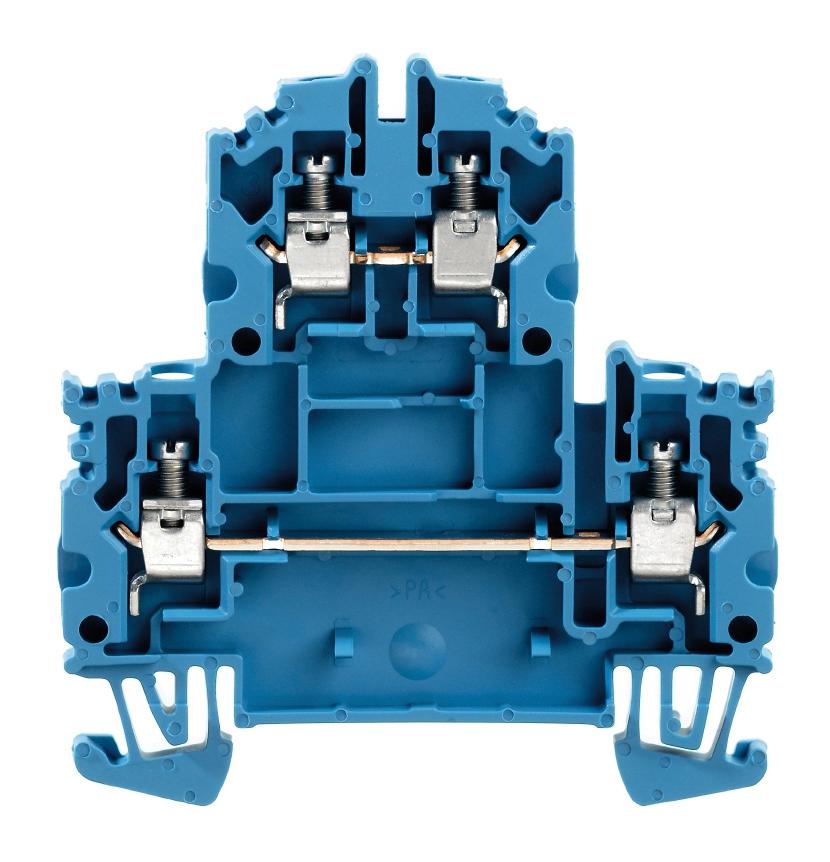

WEIDMULLER 1041980000 Industrial Terminal Block
The WDK 4N BL is a double-tier terminal block with screw connections, designed for electrical wiring, control panels, and automation systems. It features a compact size of 60mm height, 6.1mm width, and 63.25mm depth, with high-quality Wemid material rated V-0 flame retardant. Suitable for operating temperatures up to 55°C, it offers a maximum voltage of 550V and current of 30A. The terminal supports wire cross sections up to 6 mm², complies with IECEx and CSA standards, and is equipped with a snap-on mounting system, ensuring reliable electrical connections in demanding environments.
WEIDMULLER 1041980000 Industrial Terminal Block Specifications:
- Width: 6.1mm (0.24 inch)
- Height: 60mm (2.362 inch)
- Depth: 63.25mm (2.49 inch)
- Maximum operating temperature: 55°C
- Storage temperature range: -25°C to 55°C
- Material: Wemid, flame rating V-0
- Rated voltage: 800V
- Rated current: 32A
- Wire cross section max.: 6mm²
- Number of potentials: 2
- Number of levels: 2
- Clamping points per level: 2
- Certifications: IECEx, ATEX, CSA, UL
- Mounting: Snap-on
- Connection type: Screw
- Clampable conductors: 2 wires (min 0.5mm², max 1.5mm²)
- Operating temperature range: -60°C to 130°C
Buy the Weidmueller WDK 4N BL – Reliable Terminal Block for Industrial Applications
Secure your automation and control projects with the Weidmueller Series WDK 4N BL terminal block. Designed for high reliability, it supports up to 30A and 6mm² wires. Its compact size of 60mm height and 6.1mm width makes it ideal for space-constrained control panels. With IECEx and CSA certification, it ensures safe operation in hazardous environments. Easily snap-on mountings and screw connections provide quick installation. Trust this proven industrial terminal for durable, secure connections in demanding conditions—order online today for quick delivery and optimal performance.
Order your Weidmueller Series WDK 4N BL terminal block today and enhance your control system with dependable, high-quality electrical connections.
