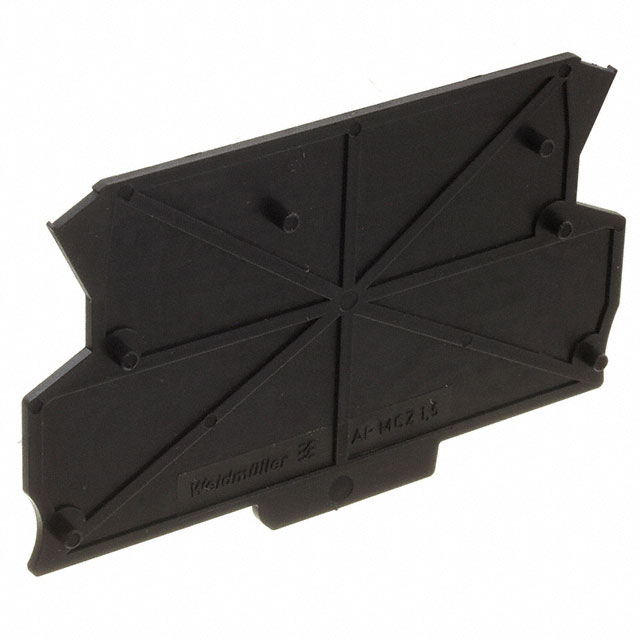

WEIDMULLER 1046410000 Housing Terminal Block
The Weidmuller OMNIMATE Housing - TERMINALBOX AP MCZ1.5 SW 1683 is a versatile housing solution for modular terminal applications. This black end plate, with a width of 1.5mm, provides a secure and organized connection point for various electrical components. The hinged top plate allows for easy labeling and access to potentiometers and status displays, while plug-in crossconnectors enable interconnection of the top connections. Its robust Wemid (PA) insulating material and V-0 flammability rating ensure reliable performance in industrial environments.
WEIDMULLER 1046410000 Housing Terminal Block Specifications:
- Color: Black
- Order No.: 1046410000
- Version: End plate, OMNIMATE Housing - TERMINALBOX
- GTIN(EAN): 4032248782246
- Qty.: 50 pc(s).
- Length: 91 mm
- Length(inches): 3.583 inch
- Width: 1.5 mm
- Width(inches): 0.059 inch
- Height: 55.85 mm
- Height(inches): 2.199 inch
- Net weight: 6.16 g
- Power loss, max.: 0.8 W
- Protection degree: IP20
- Insulatingmaterial: Wemid(PA)
- Colour chart(similar): RAL 9011
- Comparative TrackingIndex(CTI): ≥ 600
- Storage temperature,min.: -25 °C
- Max. relative humidityduringstorage: 80 %
- Operatingtemperature,max.: 120 °C
- Temperature range, installation, max.: 120 °C
- Insulatingmaterialgroup: IIIa
- UL 94 flammabilityrating: V-0
- Storage temperature,max.: 55 °C
- Operatingtemperature,min.: -50 °C
- Temperature range,installation,min.: -25 °C
- ETIM 6.0: EC000886
- eClass 9.1: 27-14-11-33
- UNSPSC: 30-21-18-27
- ETIM 7.0: EC000886
- eClass 10.0: 27-14-11-33
