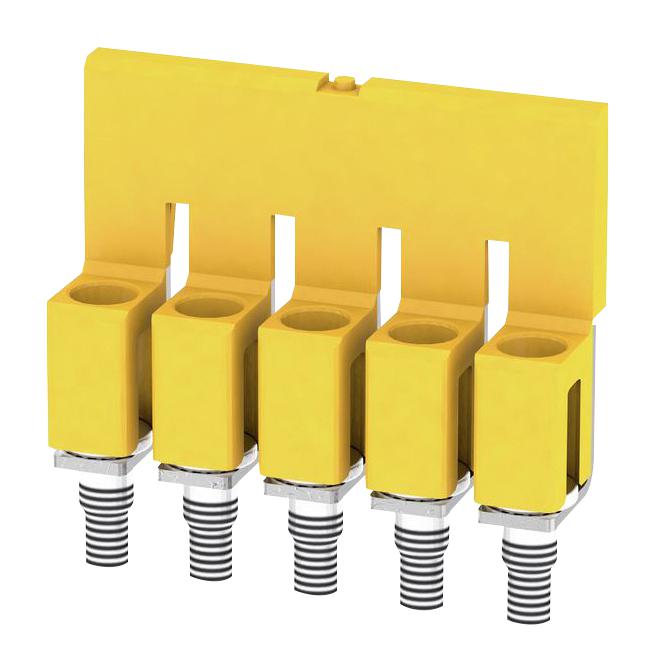

WEIDMULLER 1053960000 Feed Through Terminal
The WEIDMULLER 1053960000 feed-through terminal provides a robust and versatile solution for connecting wires in industrial applications. It is designed to accommodate various wire sizes, offering flexibility in system design. Compatible with both screw and pluggable jumpers, this terminal ensures secure and efficient electrical connections. Its compact design and ease of use make it suitable for a wide range of applications, including automation, control systems, and power distribution.
WEIDMULLER 1053960000 Feed Through Terminal Specifications:
- Derating Chart: Applicable when using pluggable jumpers. 1 jumper: 300V, 600V; 2 jumpers: 125V, 400V; 3 jumpers: 125V
- Terminal Block Selection Data: Available in Beige Wemid, Blue Wemid, Orange PA, Red PA, Yellow Wemid, Green Wemid, Violet PA, Brown Wemid, Gray Wemid, White Wemid, Black PA
- Width / Length / Height mm (in.): 5/44/37.5 (.20/1.73/1.48)
- Insulation stripping length mm (in.): 10 (.39)
- Rated voltage / rated current / wire size UL: 300 V / 25 A / #22…12 AWG
- Rated voltage / rated current / wire size CSA: 300 V / 25 A / #22…12 AWG
- Rated voltage / rated current / wire size VDE: 500 V / 24 A / 1.5 mm2
- Torque Nm (lb. in.): 0.51 (4.5)
- Clamping screw M: 2.5
- End Plate / Partition thickness mm: 1.5
- Jumpers: WQV and ZQV jumpers available. Final number indicates no. of poles.
- Cutting tool: WAW 1
- Screwdriver: SD
- Test plug ø mm: 2.3
- Marking Tags: DEK 5/5
