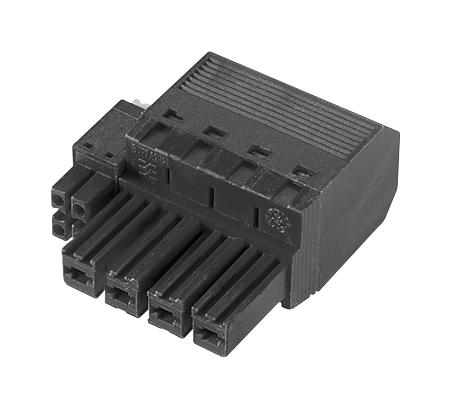

WEIDMULLER 1080550000 Power Signal Connector
The BVF 7.62HP/02/180 BCF/04R SN BK BX is a high-quality, PCB plug-in connector series designed for industrial applications, enabling simultaneous connection of power, signals, and optional shielding. With a 7.62 mm pitch and 180° female plug, it features PUSH IN technology, self-locking flanges, and pluggable shield connections for simplified installation. Suitable for connecting servo drives and asynchronous motors, it meets IEC 61800-5-1 and UL 1059 class C standards, offering reliable, space-efficient power and signal distribution in demanding environments.
WEIDMULLER 1080550000 Power Signal Connector Specifications:
- Pitch: 7.62 mm (0.3 inch)
- Number of poles: 2
- Voltage rating IEC: 1000 V
- Current rating IEC: 38 A
- Voltage rating UL: 600 V
- Current rating UL: 35 A
- Conductor cross-section range: 0.5 - 10 mm²
- Contact material: Copper alloy, tinned surface
- Insulating material: PA GF, Black (RAL 9011)
- Flammability rating: V0 (UL 94)
- Push-in connection: Max clamping range 10 mm²
- Temperature resistance: -60°C to +125°C
- Protection class: IP 20
- Touch-safe: Yes, DIN VDE 57 106
- Creepage distance: 12.7 mm
- Clearance: 10.4 mm
- Durability: 25 plugging cycles
- External dimensions: Standard based on pitch and number of poles
Buy the Weidmueller BVF 7.62HP – Reliable Power and Signal Connector for Industrial Applications
Enhance your industrial projects with the Weidmueller BVF 7.62HP connector, offering robust power, signal, and shielding connections. This PCB plug features PUSH IN technology, ensuring quick, secure installation with a 7.62 mm pitch and a 180° female plug design. Its high current and voltage ratings meet IEC and UL standards for safety and performance. Ideal for automation, motor drives, and control systems, this connector's space-saving design and durable construction make it a smart choice for demanding environments. Buy online now for dependable industrial connectivity.
Order your Weidmueller Series BVF 7.62HP connector today and ensure reliable, space-efficient power and signal connections in your industrial systems.
Frequently Asked Questions
Where can I buy WEIDMULLER 1080550000?
You can click on the BUY or RFQ button to purchase 1080550000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1080550000?
You can download the 1080550000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1080550000?
WEIDMULLER
