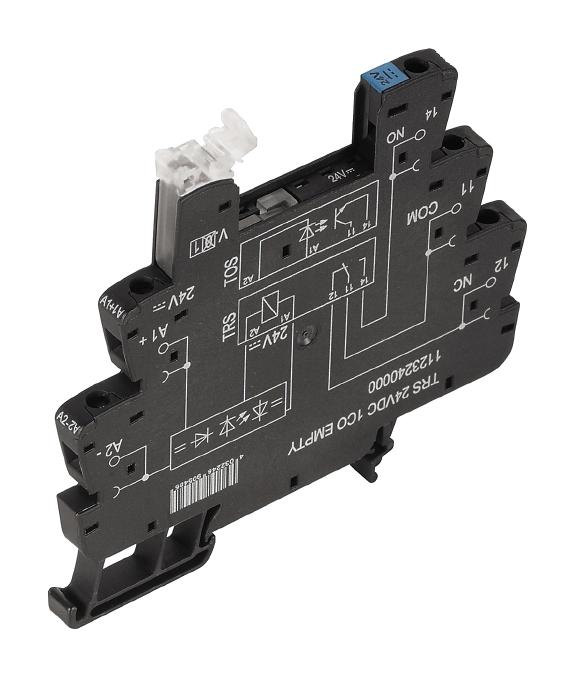

WEIDMULLER 1123240000 Electromechanical Relay Base
The TERM Series TRS 24VDC 1CO Empty is an electromechanical relay base designed for industrial control applications. It features a single change-over (SPDT) contact rated at 10 A and operates with a control voltage of 24 V DC, with a tolerance of +20%. The relay base is equipped with screw-type connections, suitable for wire cross-sections from AWG 26 to AWG 14, and includes a green LED indicator for status. Compact and robust, it complies with UL, cURus, and EN standards, making it ideal for automation and control systems.
WEIDMULLER 1123240000 Electromechanical Relay Base Specifications:
- Width: 6.4 mm (0.252 inch)
- Height: 89.6 mm (3.528 inch)
- Depth: 87.8 mm (3.457 inch)
- Net weight: 28.29 g
- Operating temperature: -40°C to 85°C
- Connection: Screw terminal for wire cross-section AWG 26 to AWG 14
- Tightening torque: 0.4 Nm
- Flammability rating: UL 94 V-0
- Pollution severity level: 2
- Rated control voltage: 24 V DC ±20%
- Rated switching voltage: 250 VAC
- Continuous current: 10 A
- Contact type: 1 CO (SPDT)
- Conductor cross-section, flexible: min. 0.25 mm², max. 2.5 mm²
- Surge voltage category: Ul
- Dielectric strength: 4 kV / 1 min
- Impulse withstand voltage: 6 kV (1.2/50 μs)
- Protection degree: 1P20
- Compliance: UL (cURus), DIN EN 50178
- Material: Insulation coordination maintained at 300 V, pollution severity level 2
- Ambient temperature, maximum: 60°C
- Altitude: <= 2000 m above sea level
Buy the Weidmueller TRS 24VDC 1CO Empty – Reliable Control Relay for Industrial Applications
Get the Weidmueller TERM Series TRS 24VDC 1CO Empty today for robust and reliable control solutions. Featuring a 24 V DC control voltage, 1 change-over contact rated at 10 A, and screw connections, this compact relay base offers optimal performance. Its UL V-0 flammability rating, adherence to industry standards, and adjustable wire cross-sections from AWG 26 to 14 make it suitable for automation tasks. Easy to install and engineered for durability, it enhances your control system efficiency.
Buy Weidmueller TRS 24VDC 1CO Empty now and experience unmatched reliability and performance in industrial control systems.
