Weidmuller HDCKITHE24130M Heavy Duty Connector

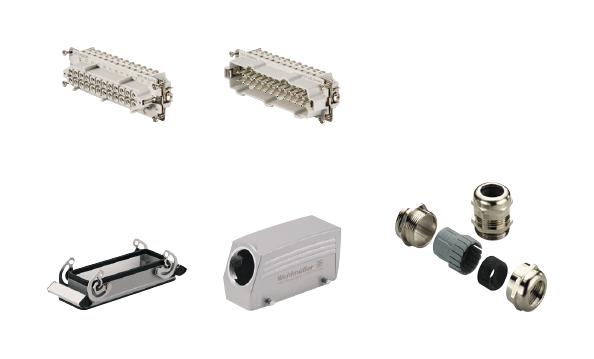

The HDC kits are robust, heavy-duty connector assemblies featuring a diecast aluminium housing, screw connection type, and M32 cable gland. Designed for industrial applications, these kits support 24 poles, operate at a rated voltage of 500 V and current of 16 A, with temperature limits from -40°C to 100°C. They include a male and female insert, a plug housing, a bulkhead housing, and a cable gland. Suitable for various demanding environments, they are engineered for reliable electrical connections in automation and control systems.
Weidmuller HDCKITHE24130M Heavy Duty Connector Specifications:
- Material: Diecast aluminium
- Number of poles: 24
- Size: 8
- Rated voltage: 500 V
- Rated current: 16 A
- Cable gland: M32
- Connection type: Screw connection
- Max conductor cross-section: 2.5 mm²
- Min conductor cross-section: 0.5 mm²
- Surface finish: Powder coating
- Temperature range: -40°C to 100°C
- Net weight: 785.68 g
- Max torque for main contact: 0.55 Nm
- Min torque for main contact: 0.5 Nm
- Housing material: Diecast aluminium
Buy the Buy Weidmueller HDC Kits Part Number HDCKITHE24130M Online
Secure your industrial automation projects with the Weidmueller Heavy Duty Connector Kit designed for robustness and reliability. Featuring a diecast aluminium housing, screw connection, and M32 cable gland, this 24-pole kit supports up to 16 A at 500 V, with an operational temperature range from -40°C to 100°C. Easy to install, it includes male and female inserts, a plug housing, a bulkhead housing, and cable gland, making it ideal for demanding industrial environments. Purchase online for fast, dependable delivery.
Order your Weidmueller Heavy Duty Connector Kit HDCKITHE24130M today and ensure reliable, industrial-grade electrical connections for your demanding projects.
Frequently Asked Questions
Where can I buy Weidmuller HDCKITHE24130M?
You can click on the BUY or RFQ button to purchase HDCKITHE24130M from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCKITHE24130M?
You can download the HDCKITHE24130M datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCKITHE24130M?
Weidmuller
