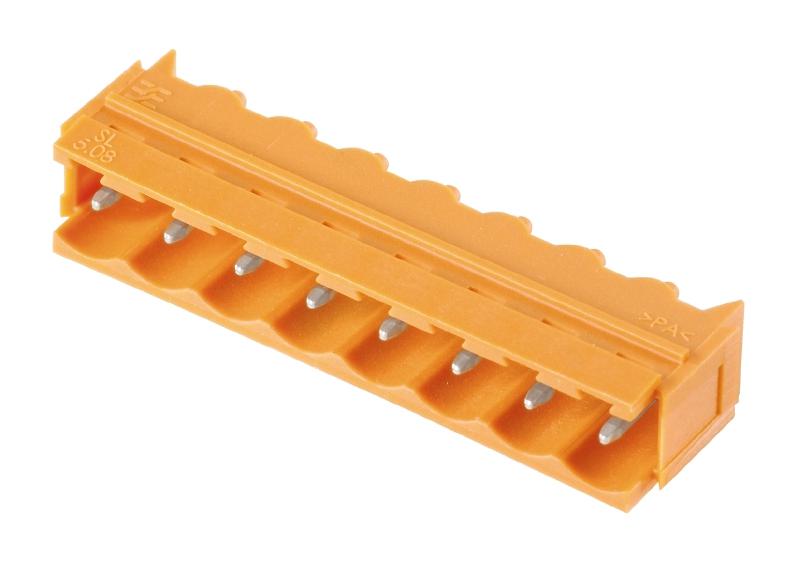

WEIDMULLER 1148030000 PCB Male Header
The Weidmüller OMNIMATE Signal Series SL 5.08HC/02/90B 3.2SN OR BX is a high-quality PCB male header designed for secure and reliable board-to-wire connections. Featuring 5.08 mm pitch, tinned octagonal solder pins, and a compact 11.92 mm width, it offers easy PCB mounting via THT soldering. The orange insulating housing, rated for 400 V / 24 A, is suitable for industrial control, automation, and electronic applications, with high durability thanks to its robust PA GF material and high IP protection. It ensures precise wiring with a 3.2 mm solder pin length, withstands temperature variations, and is UL and IEC certified for safety and performance.
WEIDMULLER 1148030000 PCB Male Header Specifications:
- Pitch in mm: 5.08 mm
- Pitch in inches: 0.2 inch
- Number of poles: 2
- Solder pin length: 3.2 mm
- Solder pin dimensions: d= 1.2 mm, octagonal
- Solder eyelet diameter: 1.3 mm
- Width: 11.92 mm
- Height: 11.7 mm
- Depth: 12 mm
- Material: PA GF insulating material, tinned CuMg contact
- Rated voltage: 400 V
- Rated current: 24A
- Temperature range: -50°C to 100°C
- Flammability rating: UL 94 V0
- Insulation strength: 210°
- CTI: >550
- Plugging cycles: 25
- Color: Orange (RAL 2000)
- Approvals: UL, IEC 60947-7-1
Buy the Weidmueller Series SL 5.08HC PCB Male Header: 1148030000
Order the Weidmueller Series SL 5.08HC PCB male header online today to ensure reliable and secure electrical connections in your control panels and automation systems. Featuring 5.08 mm pitch and rated for 400 V / 24 A, this high-quality orange insulating header is designed for robust THT soldering with octagonal pins and a compact profile. It’s ideal for professional electronics and industrial applications, offering durability, high current capacity, and compliance with safety standards. Enhance your project efficiency by purchasing this dependable connector now.
Get Weidmueller SL 5.08HC PCB male header today—built for precision and long-lasting durability in industrial wiring.
