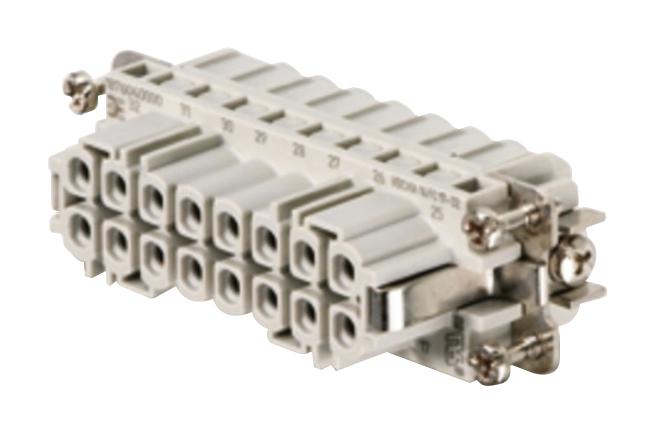

WEIDMULLER HDCHA16FC1732 female industrial connector
The HDC HA 16 FC 17-32 is a compact, female connector insert designed for industrial wiring applications. Constructed with copper alloy and rated for 250 V and 16 A, it features a crimp connection for reliable, durable electrical contact. Measuring 73 mm in length, 23 mm in width, and 31.1 mm in height, it supports a maximum conductor cross-section of 2.5 mm². Suitable for use in demanding environments, it has a temperature limit of 40°C to 125°C, and up to 2500 plugging cycles with gold contacts, ensuring long-term performance in automation and control systems.
WEIDMULLER HDCHA16FC1732 female industrial connector Specifications:
- Rated Voltage: 250 V
- Rated Current: 16 A
- Poles: 16
- Material: Copper alloy
- Temperature Range: 40°C to 125°C
- Dimensions: Length 73mm, Width 23mm, Height 31.1mm
- Conductor Cross-Section: Max 2.5 mm², Min 0.5 mm²
- Crimp Connection Type
- Plugging Cycles: 2500 gold, 2500 silver
- Surface Finish: Silver passivated, gold
- UL Flammability Rating: V0
- Insulation Resistance: 10^9 Ω
- Fixing Screw: M4
- Tightening Torque: Max 1.5 Nm, Min 1.2 Nm
Buy the Weidmueller HDC HA 16 FC 17-32 – Reliable Industrial Connector for Control Systems
Purchase the Weidmueller HDC HA 16 FC 17-32 connector online today and enhance your control and automation systems with a high-quality, durable, and reliable connection solution. Designed for industrial environments, this connector features a crimp contact method, copper alloy construction, and supports up to 250 V and 16 A. With a compact size of 73mm length, 23mm width, and 31.1mm height, it ensures ease of installation and long-term performance in demanding applications. Order now for fast delivery and top-quality performance.
Order your Weidmueller Series HDC HA 16 FC 17-32 connector today and ensure your industrial projects have dependable, long-lasting electrical connections.
Frequently Asked Questions
Where can I buy WEIDMULLER HDCHA16FC1732?
You can click on the BUY or RFQ button to purchase HDCHA16FC1732 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part HDCHA16FC1732?
You can download the HDCHA16FC1732 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of HDCHA16FC1732?
WEIDMULLER
