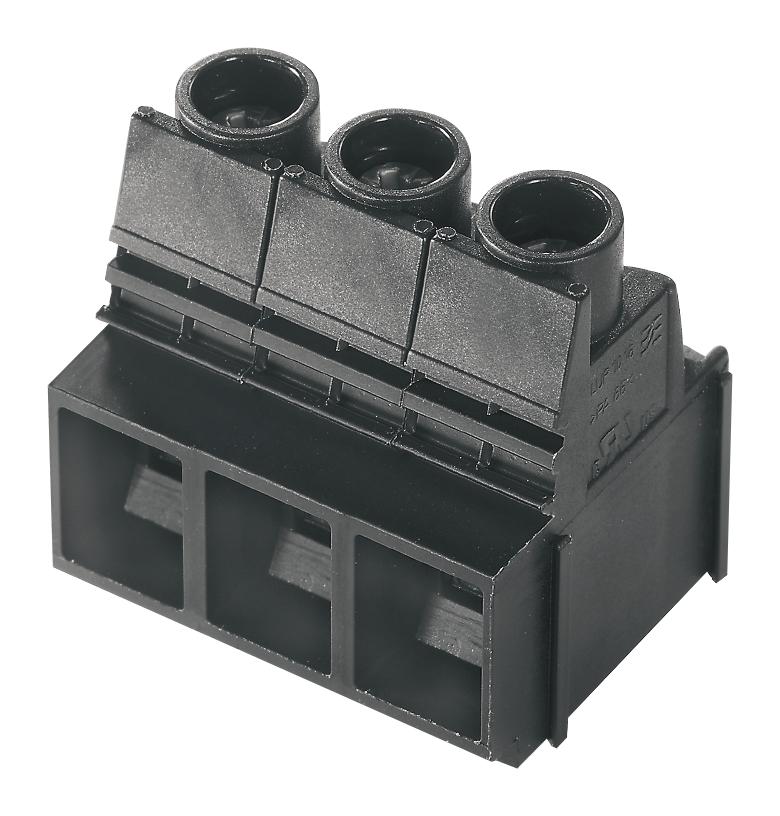

WEIDMULLER 1226320000 Industrial Power Terminal
This PCB terminal from the OMNIMATE Power series LUP provides reliable connections up to 1000 V and 76 A, suitable for conductor cross-sections from 0.5 to 16 mm² or AWG 26 to AWG 6. Designed with a clamping yoke mechanism and a 10.16 mm pitch, it supports high-performance electrical connections in industrial applications. The terminal features a 3.2 mm solder pin, 90° conductor outlet, and is made from durable, flame-retardant Wemid (PA) material, ensuring safety and durability in demanding environments.
WEIDMULLER 1226320000 Industrial Power Terminal Specifications:
- Rated voltage: 1000 V (IEC), 300 V (UL)
- Rated current: 76 A (IEC), 58 A (UL)
- Conductor range: 0.5 - 16 mm² (IEC), AWG 26 - AWG 6
- Pitch: 10.16 mm (0.4 inch)
- Number of poles: 5
- Solder pin length: 3.2 mm
- Material: Wemid (PA), insulating, flame-retardant V0 (UL 94)
- Contact material: Copper, tinned
- Max. clamping range: 16 mm²
- Operating temperature: -50°C to +120°C
- Storage temperature: -25°C to +55°C
- Dimensions: 40.64 mm length, 12x1.2 mm solder pins
- Touch-safe rating: IP20 plugged, IP10 unplugged.
- Weight: 46.16 g
Buy the Weidmueller Series LUP PCB Terminal: 1226320000
Purchase the high-quality Weidmueller Series LUP PCB terminal online today to ensure secure, durable, and efficient electrical connections for your industrial applications. This terminal supports up to 1000 V and 76 A, with a conductor range of 0.5 to 16 mm², making it ideal for high-current wiring tasks. Featuring a robust clamping yoke, a 10.16 mm pitch, and a 90° conductor outlet, it guarantees reliable performance and easy installation. Order now for quick delivery and optimal electrical safety.
Buy Weidmueller Series LUP 1226320000 now and experience unmatched reliability and performance in industrial electrical connections.
