WEIDMULLER 2617840000 Relay Module

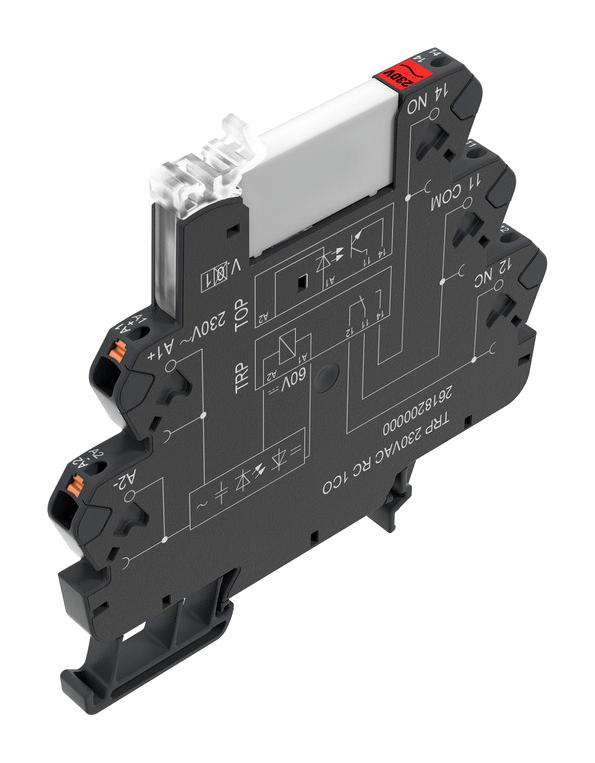

The TERMSERIES relay module features a complete, reliable design with one AgSnO contact, suitable for controlling AC loads up to 6 A at 120 V. Its compact dimensions include a width of 6.4 mm, height of 89.4 mm, and depth of 87.8 mm, making it ideal for automation applications. It incorporates a rectifier, RC filter, and illuminated ejection lever for easy operation. The module supports continuous operation at maximum temperatures of 60°C, with high dielectric strength and UL/MIL certifications for safety. Its robust construction ensures long service life and dependable switching performance, ideal for industrial environments requiring precise and durable relays.
WEIDMULLER 2617840000 Relay Module Specifications:
- Dimensions: Width 6.4 mm, Height 89.4 mm, Depth 87.8 mm
- Weight: 309 g
- Control Voltage: 120 VAC ±10%
- Rated Control Current: 7 mA
- Continuous Current: 6 A
- Maximum Switching Voltage: 250 VAC/DC
- Switching Capacity: 1500 VA resistive AC, 144 W resistive DC at 24 V
- Delay Times: Switch-on <15 ms, Switch-off <50 ms
- Contact Material: AgSnO
- Mechanical Life: 5x10^6 cycles
- Connections: Push-in, Clamping range 0.14-2.5 mm², AWG 26-14
- Operating Temperature: -40°C to 60°C
- Humidity Range: 5-95% RH
- Protection Degree: IP20
- Dielectric Strength: Input/Output 4 kV, Contact to Mounting Rail 4 kV
- Standards: EN 50178, EN 55011, UL, cULus
- Certification: UL Certificate No. E141197
- Pollution Severity Level: 2
Buy the Buy Weidmueller relay module Part Number 2617840000 Online
Experience dependable performance with the Weidmueller relay module featuring a single AgSnO contact, rated 6 A at 120 V. Its compact design, UL certification, and robust construction make it ideal for industrial automation requiring precise switching and high durability. The module supports push-in connections with a broad wire range, includes protective circuitry, and ensures reliable operation in demanding environments. Trust this relay to deliver consistent switching capacity and long service life, making online purchase a smart choice for your automation projects.
Get Weidmueller relay module 2617840000 today—built for precision and long-lasting durability in industrial automation.
