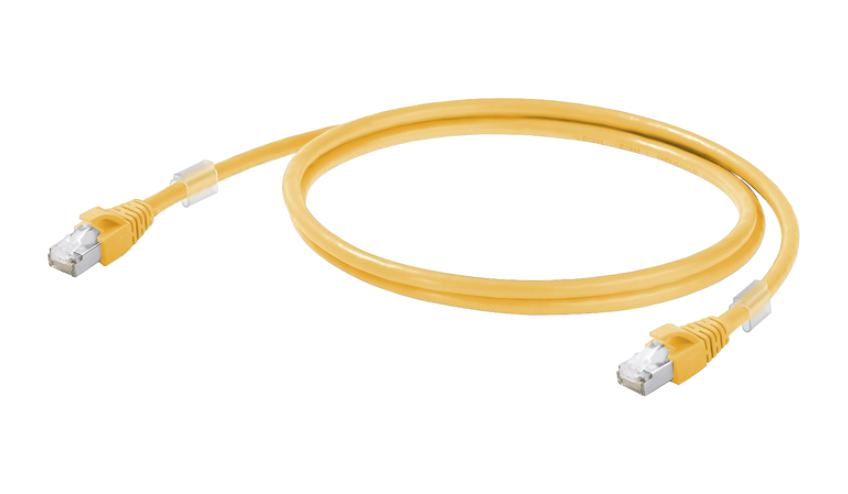

WEIDMULLER 1251580005 Industrial Ethernet Patch Cable
This assembled Cat 6 patch cable features LSZH-rated yellow insulation suitable for industrial Ethernet networking. It complies with ISO/IEC 11801 standards, offering reliable high-speed data transmission up to 10 GBit/s over 0.5 meters. The cable has a robust construction with copper strands and complete shielding, ensuring minimal interference. It supports PoE applications, with a dielectric insulation cross-section of 1.04 mm, a shield braid with 60% overlap, and a sheath diameter of 5.5 to 5.9 mm, making it ideal for demanding industrial environments.
WEIDMULLER 1251580005 Industrial Ethernet Patch Cable Specifications:
- Length: 0.5m
- Sheath material: LSZH
- Sheath color: Yellow
- Sheath diameter: 5.5mm - 5.9mm
- Copper wire diameter: 0.43mm
- Number of wires: 8
- Wire arrangement: White-blue, White-orange, White-green, White-brown
- Shielding: Complete shielding with S/FTP copper braid (60% overlap)
- Connector: RJ45, IP20, gold-plated contacts (Au 20.8 um)
- Impedance: 100 + 15 Ohms
- Operating temperature: -20°C to +60°C
- Supports data rates up to 10 GBit/s
- Compliance: IEC 60332-1, UL 1581, RoHS, REACH
- Electrical test voltage: 750 VDC, 1 min
- Maximum operating voltage: 48 V AC/DC
- Bending radius: Minimum 25mm once, 50mm repeatedly
- Flame resistance: IEC 60332-1 / UL 1581 FT2
- Speed: 10 GBit/s, according to Category 6 specifications
Buy the Weidmiiller Series Industrial Ethernet: IE-C6FP8LYO005M40M40-Y
Secure your industrial network with the Weidmiiller Series Industrial Ethernet patch cable. This 0.5m yellow shielded Cat 6 cable ensures high-speed data transfer up to 10 GBit/s, supporting PoE and compliant with industrial standards. Its complete shielding with S/FTP copper braid minimizes interference, while the LSZH sheath provides fire safety. Easy to install with a minimum bending radius of 25mm, it’s ideal for demanding industrial settings. Purchase now for durable, high-performance networking connectivity.
Buy Weidmiiller IE-C6FP8LYO005M40M40-Y industrial Ethernet patch cable online now and experience reliable high-speed data transfer and robust shielding in demanding environments.
Frequently Asked Questions
Where can I buy WEIDMULLER 1251580005?
You can click on the BUY or RFQ button to purchase 1251580005 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1251580005?
You can download the 1251580005 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1251580005?
WEIDMULLER
