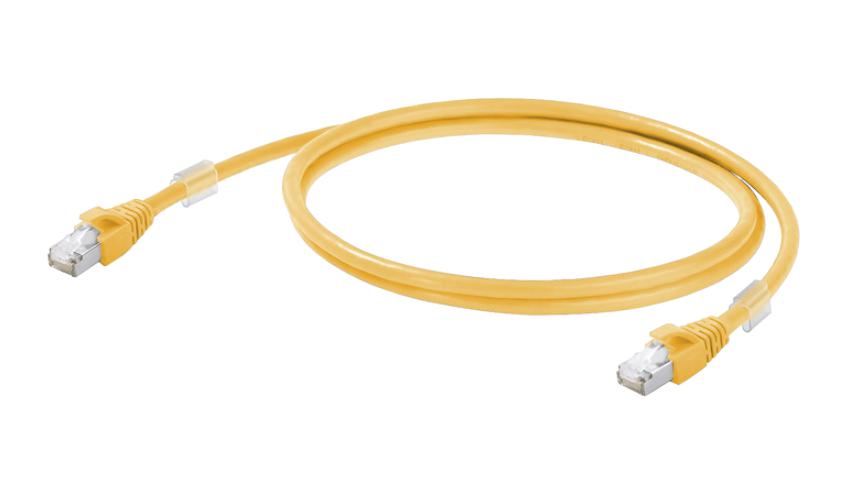

WEIDMULLER 1251580100 Industrial Ethernet Cable
This high-quality assembled Ethernet patch cable features Cat. 6 compliance with LSZH sheath material, yellow color, and shielded twisted pairs for reliable industrial networking. Designed for durable performance, it supports 10 GBit/s data transfer speeds, operates within -20°C to 60°C temperatures, and meets various international standards including UL, RoHS, and IEC. The cable's shielding braid offers superior protection against interference, making it suitable for demanding industrial environments. It has robust copper conductors, a minimal bending radius of 25mm, and is halogen-free for enhanced safety and environmental compliance, ensuring long-term, secure network connectivity.
WEIDMULLER 1251580100 Industrial Ethernet Cable Specifications:
- Length: 10m (0.394 inches)
- Sheath Material: LSZH (Halogen-free)
- Sheath Diameter: 5.5mm - 5.9mm
- Color: Yellow
- Cable Structure: Copper diameter 0.43mm, 7 strands per wire, cross-section 4x2 AWG 27/7, insulated with PE
- Number of Wires: 8 twisted pairs
- Shielding: Complete shielding with S/FTP copper braid, 60% overlap
- Impedance: 100 + 15 Q at 1-100 MHz
- Capacitance: 46 nF/km at 1 kHz
- Resistance: Differential 5%, Test voltage 750 VDC, 1 min
- Speed: 10 GBit/s
- Bending Radius: Minimum once only 25mm, repetitive 50mm
- Operating Temperature: -20°C to 60°C
- Certifications: UL, RoHS, IEC 60332-1, IEC 60754-2
- Connector standard: RJ45 IP 20, gold-plated contact surface (Au 20.8 μm)
- Electrical: Operating voltage 48 V AC/DC, Characteristic impedance 100 ±15 Q
- Compliance: EN 50173-1:2007, ISO/IEC 11801:2002
- Flame Resistance: IEC 60332-1, UL 1581 FT2
- Resistance to flame and halogen free, suitable for harsh environments
Buy the Weidmiiller 1251580100 – Reliable Industrial Ethernet Cable for Networking Applications
Enhance your industrial network with the Weidmiiller Ethernet patch cable, featuring Cat. 6 compliance, shielded twisted pairs, and LSZH sheath for safety and durability. With a length of 10 meters, it supports 10 GBit/s data transmission speeds, operating reliably between -20°C and 60°C. Its complete shielding braid protects against interference, ensuring high-quality signal integrity in harsh industrial conditions. Meets UL, RoHS, IEC standards, and flame resistance requirements, making it the ideal choice for factory automation, data centers, and infrastructure projects. Buy online now for fast delivery and dependable performance.
Order your Weidmiiller Series 1251580100 industrial Ethernet cable today and ensure robust, high-speed network connections in demanding environments.
Frequently Asked Questions
Where can I buy WEIDMULLER 1251580100?
You can click on the BUY or RFQ button to purchase 1251580100 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1251580100?
You can download the 1251580100 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1251580100?
WEIDMULLER
