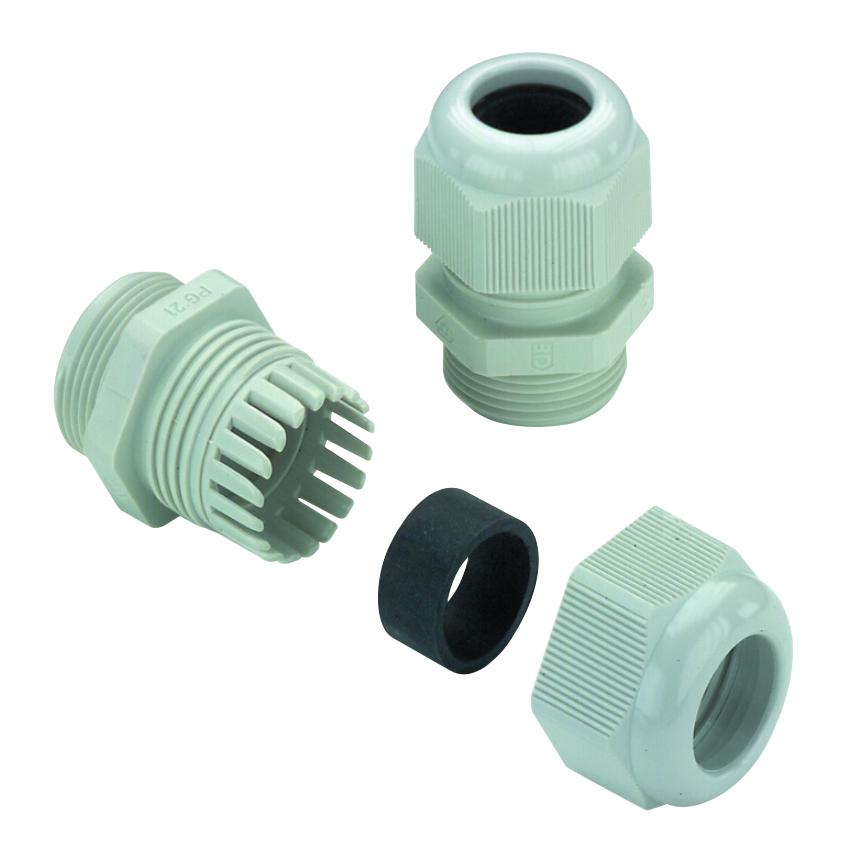

WEIDMULLER VGM201K68 Cable Gland
This cable gland features a durable polyamide 6 construction designed for high protection levels including IP66, IP67, and IP68. It accommodates cable diameters between 6mm and 12mm, with external M20 thread and 10mm thread length. Suitable for applications up to 100°C, it ensures reliable sealing with optional sealing rings for threaded connections. The gland is ideal for industrial environments requiring robust, compliant cable entries that withstand harsh conditions, including water and dust ingress. Its compact size and high torque capacity make it a versatile choice for industrial wiring and automation systems.
WEIDMULLER VGM201K68 Cable Gland Specifications:
- Material: Polyamide 6
- Thread Size: M20
- Thread Length: 10 mm
- Outer Diameter Range: 6-12 mm
- Length: 39.5 mm
- Weight: 10.39 g
- Protection Degree: IP54, IP66, IP67, IP68 - 5 bar
- Operating Temperature Range: -30°C to +100°C
- Max Torque for Cap Nut: 5.5 Nm
- Min Torque for Cap Nut: 4.5 Nm
- Sealing Ring: Optional for threaded connections
- Standards: DIN EN 62444, IEC 62444
- UL Flammability Rating: UL 94
Buy the Weidmueller Series VG M20-1/K68 Cable Gland: VGM201K68
Acquire the Weidmueller VG M20-1/K68 cable gland online today for dependable, waterproof cable management solutions. Designed for rugged industrial environments, this gland offers IP66/IP67/IP68 protection, accommodating cables from 6 to 12mm in diameter. Constructed from durable polyamide 6, it ensures long-lasting performance even under harsh conditions. With a compact size of 39.5 mm length and supporting operating temperatures up to 100°C, this gland is perfect for secure, dust and water-proof wiring connections. Purchase now for quick delivery and enhanced safety in your electrical projects.
Order your Weidmueller Series VG M20-1/K68 cable gland today and secure your industrial wiring with reliable waterproof protection and easy installation.
