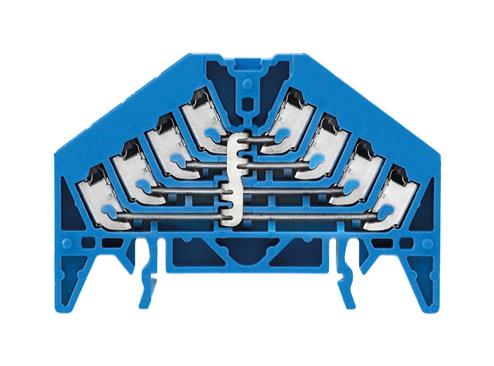

WEIDMULLER 1267920000 Four-Channel Terminal Block

WEIDMULLER 1267920000 Four-Channel Terminal Block Specifications:

• Type: PPV 4 BL 35X7.5 DGR
• Order No.: 1267920000
• Version: P-series, Potential distributor
• Rated cross-section: 1.5 mm²
• Number of levels: 4
• Number of connections: 16
• Colour: blue
• GTIN(EAN): 4032248112784
• Qty.: 20 pc(s).
• Width: 9.2 mm
• Height: 70 mm
• Depth: 47 mm
• Net weight: 21.95 g
• Width(inches): 0.362 inch
• Height(inches): 2.756 inch
• Depth(inches): 1.85 inch
• Storage temperature,max.: 55 °C
• Storage temperature: -25 °C...55 °C
• Continuous operating temp.,min.: -50 °C
• Temperature range, installation, max.: 40 °C
• Storage temperature,min.: -25 °C
• Temperature range,installation,min.: -10 °C
• Continuous operating temp.,max.: 130 °C
• Material: Polycarbonate
• Material of operational elements: PBT
• UL 94 flammability rating: V-0
• Version (System specifications): PUSH IN connection, Vertically cross-connected, One end without connector
• Number of potentials: 1
• Number of clamping points per level: 4
• Levels cross-connected internally: Yes
• Rail: TS 35 x 7.5
• PE function: No
• End cover plate required: Yes
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Type of mounting: Snap-on
• Certificate No.(CSA): 200039-2406089
• Current size D(CSA): 10 A
• Voltage size D(CSA): 300 V
• Wire cross section min. (CSA): 26 AWG
• Current size B(CSA): 10 A
• Voltage size B(CSA): 300 V
• Wire cross section max.(CSA): 16 AWG
• Blade size: 0.6 x 3.5 mm
• Clamping range, min.: 0.13 mm²
• Connection cross-section,stranded,min.: 0.5 mm²
• Type of connection: PUSH IN
• Wire connection cross section AWG,min.: AWG 24
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 1.5 mm²
• Wire connection cross-section, finely stranded,min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Clamping range,max.: 1.5 mm²
• Connection cross-section, stranded,max.: 1.5 mm²
• Connection direction: Inclined/angled
• Strippinglength: 10 mm
• Wire connection cross section AWG,max.: AWG 16
• Wire connection cross-section, finely stranded,max.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 0.5 mm²
• Wire connection cross-section, solid core,max.: 1.5 mm²
• Rated current: 17.5 A
• Volume resistance according to IEC 60947-7-x: 1.83 mΩ
• Rated impulse withstand voltage: 4 kV
• Surge voltage category: III
• Rated voltage: 250
• Standards: IEC 60947-7-1, DIN EN 60079
• Power loss in accordance with IEC 60947-7-x: 0.56 W
• Pollution severity: 3
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min.(cURus): 26 AWG
• Conductor size Field wiringmin.(cURus): 26 AWG
• Current size D(cURus): 10 A
• Voltage size D (cURus): 300 V
• Conductor size Factory wiring max.(cURus): 16 AWG
• Conductor size Field wiring max. (cURus): 16 AWG
• Current size B(cURus): 10 A
• Voltage size B(cURus): 300 V
• ETIM 6.0: EC000897
• eClass 9.0: 27-14-11-20
• eClass 10.0: 27-14-11-20
• ETIM 7.0: EC000897
• eClass 9.1: 27-14-11-20
