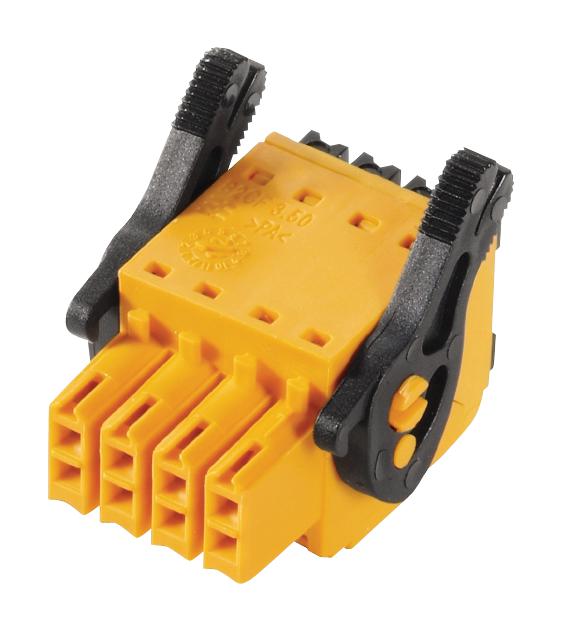

WEIDMULLER 1278320000 Signal Terminal
This two-row female plug features a push-in spring connection system, allowing for quick, tool-free wire insertion. Designed for high-density applications, it incorporates separation between wire entry and handling areas, with integrated push-buttons for easy terminal opening. Suitable for PCB connections, it supports rated currents up to 13.4 A at 320 V IEC and 95 A at 300 V CSA. Made from PA 66 GF 30 with a black UL 94 V-0 flame rating, it accommodates wire sizes from 0.14 mm² to 1.5 mm² and is ideal for industrial automation and control systems requiring reliable, space-efficient terminal blocks.
WEIDMULLER 1278320000 Signal Terminal Specifications:
- Type: B2C/S2C 3.50 - 2-row PUSH IN
- Pitch: 3.5 mm (0.138 inch)
- Number of Poles: 22, 180° outlet direction
- Rated Voltage: IEC 320 V, UL 300 V, CSA 300 V
- Rated Current: 13.4 A IEC, 95A CSA
- Clamping Range: 0.14 mm² to 1.5 mm² wire cross-section
- Operating Temperature: -60°C to 120°C
- Insulation Material: PA 66 GF 30, Black, UL 94 V-0
- Contact Material: Copper alloy, Tinned surface
- Wire End Ferrule Compatibility: DIN 46228, min. 0.14 mm², max. 1.5 mm²
- Protection Class: IP20 touch-safe, DIN VDE compliant
- Packaging: Box, Up to 25 mating cycles
Buy the Weidmueller F-50 - Reliable Industrial Signal Connector for Automation and Control Systems
Purchase the Weidmueller signal terminal online today and experience fast, tool-free wiring with push-in connection technology. Ideal for automation, control panels, and industrial electronics, this connector offers high electrical ratings, space-efficient 2-row design, and robust construction with a UL V-0 flame rating. Its wide wire range accommodates various wire sizes, ensuring flexibility and reliability. Easy to install, durable, and suitable for numerous applications, this product guarantees secure connections and simplifies wiring processes for efficient, professional setups.
Order your Weidmueller Series B2CF 3.50/22/180LR SN BK BX today and enhance your industrial control projects with dependable, high-quality terminal connections.
