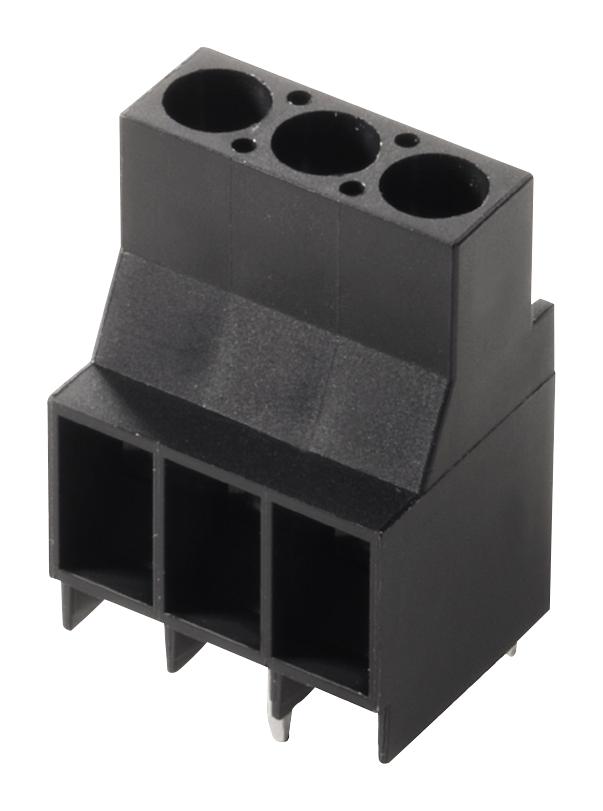

WEIDMULLER 1356850000 PCB Terminal Block
The Weidmuller OMNIMATE Signal series LL terminal block provides a robust and reliable connection solution for PCB applications. With a 6.35mm pitch and 90° conductor outlet, it's ideal for space-constrained designs. The clamping yoke connection ensures secure wire termination, while the tin-plated finish enhances conductivity and corrosion resistance. Suitable for a wide range of industrial applications requiring high voltage and current handling capabilities.
WEIDMULLER 1356850000 PCB Terminal Block Specifications:
- Base Material: PA
- Color: Black
- Contact Material: Copper Alloy
- Coating: Tin
- Insulation Resistance: ≥ 108Ω
- Flammability Rating: V-0
- Operating Temperature Max: 120 °C
- Operating Temperature Min: -50 °C
- Storage Temperature Max: 55 °C
- Storage Temperature Min: -25 °C
- Clamping Range Min: 0.18 mm²
- Clamping Range Max: 6 mm²
- Rated Voltage IEC: 1000 V
- Rated Current IEC: 32 A
- Rated Voltage UL: 600 V
- Rated Current UL: 30 A
- Solid Conductor Max: 6 mm²
- Flexible Conductor Max: 4 mm²
- Pitch: 6.35 mm
- Number of Poles: 4
- Solder Pin Length: 5 mm
- Stripping Length: 8 mm
- Net Weight: 12.2 g
