Weidmuller WTR4WITHSOCKETSCREWS Terminal Block

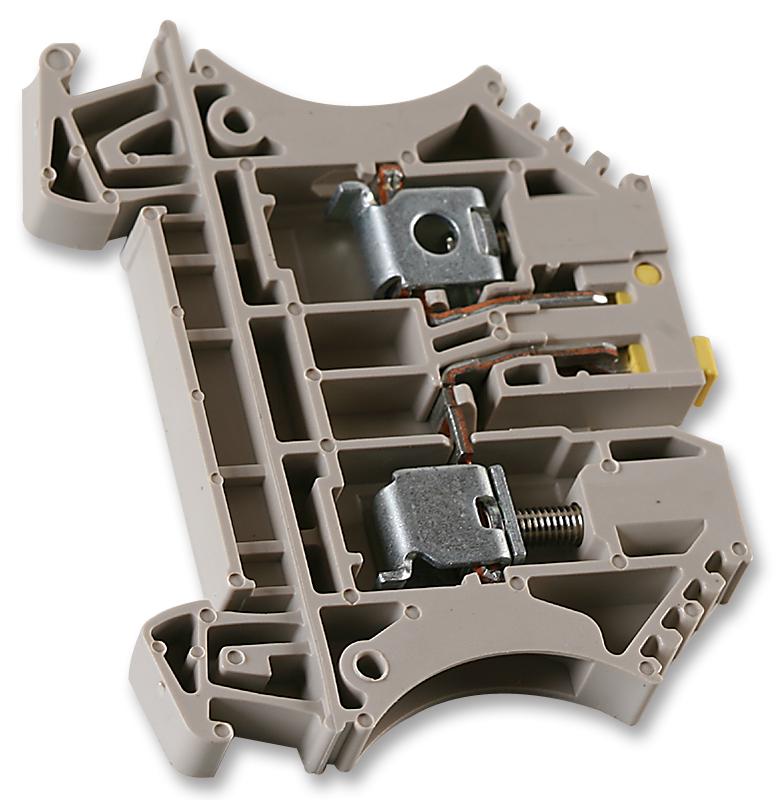

The WTR 4 STB is a test-disconnect terminal with screw connection designed for copper conductors, rated at 400 V and 32 A. Its compact dimensions include a width of 6.1mm, height of 60mm, and depth of 48mm, suitable for DIN rail mounting with a TS 35 system. Made of UL 94 V-0 rated Wemid material in dark beige, it features a single potential level, two clamping points, and a pivoting disconnection element. Suitable for automation and control systems, it ensures reliable and safe electrical connections with high thermal and voltage ratings.
Weidmuller WTR4WITHSOCKETSCREWS Terminal Block Specifications:
- Dimensions: Width 6.1mm, Height 60mm, Depth 48mm, including DIN rail 49mm
- Material: Wemid, UL 94 V-0 flammability rating
- Electrical Ratings: Max voltage 400 V, Max current 32 A
- Wire Cross Section: 0.5 mm2 to 4 mm2, flexible and solid wire compatible
- Connection Type: Screw connection with tightening torque 0.5-0.6 Nm
- Mounting: TS 35 snap-on rail, one potential, two clamping points
- Temperature Range: -50°C to +120°C continuous operation
- Explosion-tested version: No, Certification: IECEx and ATEX compliant
- UL Rating: 10A, 300V, compatible with AWG 22-10
- Dimensions include a width of 6.1mm, height of 60mm, depth of 48mm, with net weight of 12.05 g
Buy the Weidmueller Series WTR 4 STB Test-Disconnect Terminal: WTR4WITHSOCKETSCREWS
Purchase the Weidmueller Series WTR 4 STB terminal block online now for your automation and control projects. Designed with high-quality Wemid material, it offers a compact size with a width of 6.1mm, height of 60mm, and depth of 48mm, ensuring easy DIN rail mounting. Rated at 400 V and 32 A with screw connection, it provides secure, reliable electrical connections. Ideal for industrial controls, it features a single potential level, two clamping points, and compliance with safety standards, making it a perfect choice for professional wiring applications.
Order your Weidmueller Series WTR 4 STB test-disconnect terminal with screw connection today and ensure reliable, safe wiring for your control systems.
