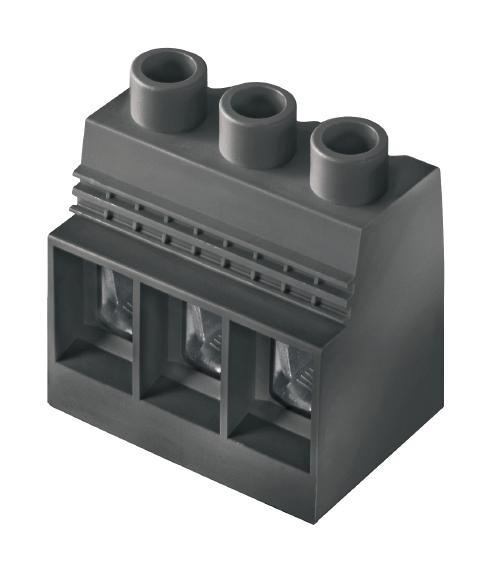

WEIDMULLER 1386250000 Power PCB Connector
The Weidmuller OMNIMATE Power series LXXX connector offers a robust solution for high-current PCB connections, integrating advanced security, power density, and miniaturization features. Its steel clamping-yoke technology ensures reliable connections for wires up to 50 mm², making it suitable for power electronics applications across the entire value-creation chain, from development to maintenance. The connector reduces size and complexity while improving application integration, fulfilling the requirements of modern power electronics.
WEIDMULLER 1386250000 Power PCB Connector Specifications:
- Order No.: 1386250000
- Version: Printed circuit board terminals, 15.00 mm
- Number of poles: 5
- Angle: 90°
- Solder pin length (l): 4.5 mm
- Color: Black
- Clamping range (max): 50 mm²
- GTIN (EAN): 4050118186284
- Quantity: 16pc(s)
- IEC rating: 1000 V / 150 A / 0.5 - 50 mm²
- UL rating: 600 V/126 A/AWG 20 - AWG 1
- Packaging: Box
- Width: 76 mm
- Height: 56 mm
- Height of lowest version: 51.5 mm
- Depth (inches): 1.22 inch
- Width (inches): 2.992 inch
- Height (inches): 2.205 inch
- Depth: 31 mm
- Net weight: 149.795 g
- Mounting: onto the PCB
- Connection type: THT solder connection
- Pitch (P): 15 mm
- Pitch (P) in inches: 0.591 inch
- Number of solder pins per pole: 4
- Solder pin dimensions: 1.2 x 1.2 mm
- Screwdriver blade standard: DIN 5264
- Tightening torque (max): 4 Nm
- Stripping length: 18 mm
- L1: 60 mm
- Insulating material: Wemid (PA)
- Color chart (similar): RAL 9011
- Comparative Tracking Index (CTI): ≥ 600
- UL 94 flammability rating: V-0
- GWFI: 960 °C
- Contact surface: tinned
- Storage temperature (min): -40 °C
- Operating temperature (min): -50 °C
- Temperature range (installation, min): -25 °C
- Storage temperature (max): 70 °C
- Operating temperature (max): 120 °C
- Temperature range (installation, max): 120 °C
- Clamping range (min): 0.5 mm²
- Wire connection cross section AWG (min): AWG 20
- Wire connection cross section AWG (max): AWG 1
- Solid conductor (min): H05(07)V-U 0.5 mm²
- Solid conductor (max): H05(07)V-U 16 mm²
- Stranded conductor (min): H07V-R 6 mm²
- Stranded conductor (max): H07V-R 50 mm²
- Flexible conductor (min): H05(07)V-K 0.5 mm²
- Flexible conductor (max): H05(07)V-K 35 mm²
- Wire end ferrule (min): 0.5 mm²
- Wire end ferrule (max): 35 mm²
