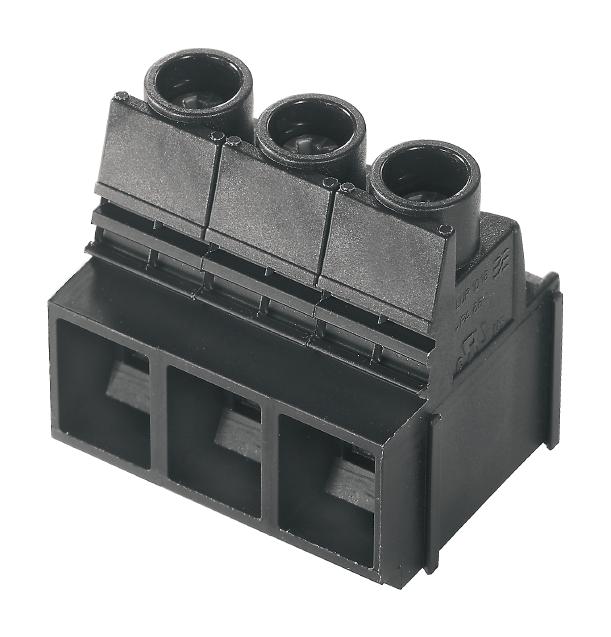

WEIDMULLER 2013920000 PCB Terminal
The PCB terminal with a 10.16 mm pitch and 90° conductor outlet offers proven clamping yoke connection, rated for 1000 V and 76 A, suitable for wire cross-sections from 0.5 mm² to 16 mm². Features include offset solder pins, test point, and black tinned surface. The device supports multiple poles and is designed for PCB mounting with THT solder connection, ensuring reliable electrical contact. Its robust construction and conformity to IEC and UL standards make it ideal for industrial automation and power applications, providing a secure, high-current connection in compact spaces.
WEIDMULLER 2013920000 PCB Terminal Specifications:
- Pitch: 10.16 mm (0.4 inch)
- Number of poles: 9
- Solder pin length: 5 mm
- Dimensions: Width 92.24 mm, Height 36.5 mm, Depth 25.1 mm
- Rated Voltage: IEC 1000 V, UL 600 V, CSA 600 V
- Rated Current: 76 A (IEC), 51 A (UL/CSA)
- Wire Cross-Section Range: 0.5 mm² to 16 mm² (AWG 22 to AWG 6)
- Max clamping range: 16 mm²
- Material: Insulating Wemid (PA), Contact material: tinned copper
- Operating Temperature Range: -50°C to +120°C
- Contact Surface: Tinned
- Protection Class: IP20 (plugged), IP10 (unplugged)
Buy the Weidmueller Series LUP PCB Terminal: 2013920000
Enhance your electrical assemblies with the Weidmueller Series LUP PCB Terminal. Featuring a 10.16 mm pitch, 9 poles, and rated for 1000 V and 76 A, this terminal ensures high-quality power connections. Its proven clamping yoke design provides secure, vibration-resistant contact for wire sizes from 0.5 mm² to 16 mm². Ideal for PCB mounting with THT soldering, it complies with IEC, UL, and CSA standards. Perfect for industrial automation, power distribution, and control panels, ensuring long-term reliability and safety in demanding environments.
Order your Weidmueller Series LUP PCB Terminal with 10.16 mm pitch today and experience reliable high-current PCB connections for industrial projects.
