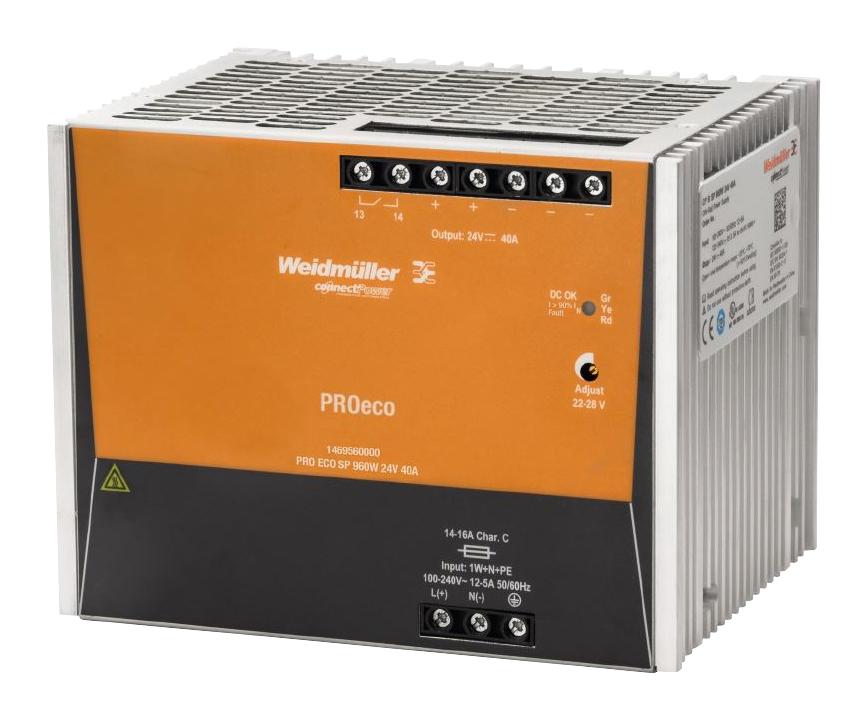

WEIDMULLER 1469560000 PRO ECO3 960W 24V 40A Power Supply

WEIDMULLER 1469560000 PRO ECO3 960W 24V 40A Power Supply Specifications:

• Base Part Number: 1469560000
• Version: Power supply, switch-mode power supply unit, 24 V
• GTIN (EAN): 4050118275728
• Quantity: 1 pc(s).
• Width: 160 mm
• Width (inches): 6.299 inch
• Height: 125 mm
• Height (inches): 4.921 inch
• Depth: 120 mm
• Depth (inches): 4.724 inch
• Net Weight: 2,899 g
• Operating Temperature (max): 70 °C
• Storage Temperature (max): 85 °C
• Operating Temperature (min): -25 °C
• Storage Temperature (min): -40 °C
• AC Current Consumption: 2.15 A @ 3 x 500 V AC / 2.68 A @ 3 x 400 V AC
• Connection System (Input): Screw connection
• DC Input Voltage Range: 450...800 V DC
• Input Frequency: 47...63 Hz
• Inrush Current: max. 40 A
• Recommended Back-up Fuse: 6 A / DI, safety fuse 10 A, Char. B, circuit breaker 6...8 A, Char. C, circuit breaker
• AC Input Voltage Range: 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
• DC Current Consumption: 1.37 A @ 800 V DC / 2.37 A @ 450 V DC
• Frequency Range AC: 47...63 Hz
• Input Fuse (internal): Yes
• Rated Input Voltage: 3 x 400...3 x 500 V AC (wide-range input)
• Surge Protection: Varistor
• Capacitive Load: unrestricted
• Continuous Output Current @ URated: 40 A @ 50 °C, 24 A @ 70 °C
• Output Voltage: 24 V
• Overload Protection: Yes
• Protection Against Inverse Voltage: Yes
• Rated Output Current @ UNom: 40 A @ 50 °C
• Residual Ripple: < 50 mVSS@ 24 V DC, IN
• Connection System (Output): Screw connection
• Output Power: 960 W
• Output Voltage (adjustable): 22...28 V (adjustable via potentiometer)
• Parallel Connection Option: yes, max. 3
• Ramp-uptime: ≤ 100 ms
• Rated Output Voltage: 24 V DC ± 1 %
• AC Failure Bridging Time: > 25 ms at 3 x 500 V AC / > 20 ms at 3 x 400 V AC
• Earth Leakage Current: 3.5 mA
• Indication: LED green (Uoutput > 21.6 V DC), LED yellow (Ioutput > 90% IRated typ.), LED red (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
• Max. Perm. Air Humidity: 5 %…95 % RH
• Power Loss (idling): 5 W
• Protection Against Overheating: Yes
• Short-Circuit Protection: Yes
• Degree of Efficiency: 90%
• Housing Version: Metal, corrosion resistant
• MTBF: > 500,000 h acc. to IEC 1709(SN29500)
• Vibration Resistance: 1g according to EN50178
• Shock Resistance: 15 g In all directions
• Noise Emission: Class A
• Interference Immunity: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11(Dips)
• Insulation Voltage Output/Earth: 0.5 kV
• Insulation Voltage Input/Earth: 2 kV
• Insulation Voltage Input/Output: 3 kV
• Class of Protection: I, with PE connection
• Pollution Severity: 2
• Electrical Machine Equipment: Acc. to EN60204
• Safety Extra-Low Voltage: SELV acc. to EN60950, PELV acc. to EN60204
• Power Factor: > 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC
• Power Loss (nominal load): 95 W
• Protection Degree: IP20
• Conductor Cross-section (AWG/kcmil, max Input): 12
• Conductor Cross-section (flexible, min Input): 0.5 mm²
• Conductor Cross-section (rigid, min Input): 0.5 mm²
• Tightening Torque (min Input): 0.5 Nm
• Tightening Torque (max Input): 0.6 Nm
• Conductor Cross-section (AWG/kcmil, min Input): 26
• Conductor Cross-section (rigid, max Input): 6 mm²
• Conductor Cross-section (AWG/kcmil, max Output): 8
• Conductor Cross-section (flexible, max Output): 10 mm²
• Conductor Cross-section (rigid, max Output): 16 mm²
• Number of Terminals (Output): 7(++,---,13,14)
• Tightening Torque (min Output): 0.5 Nm
