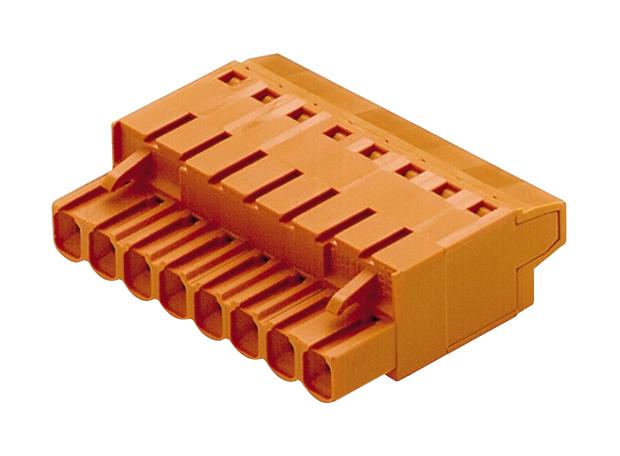

WEIDMULLER 1500060000 PCB Female Connector
The Weidmüller BLT 5.08HC/07/180 SN OR BX is a PCB plugin female connector with a 6.08 mm pitch, featuring 7 poles and a 180° straight outlet. Designed for PCB connection, it offers a high current capacity, rated at 27 A and 400 V IEC standards. Its top screw connection system ensures easy wiring, with a clamping range up to 2.5 mm², stripping length of 13 mm, and a compact, insulated orange PBT housing. Suitable for industrial automation and control applications requiring reliable, space-saving connections with coding options.
WEIDMULLER 1500060000 PCB Female Connector Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 7
- Rated voltage: 400 V IEC, 300 V UL/CSA
- Rated current: 27 A IEC, 15 A UL/CSA
- Clamping range: 0.13 mm² to 2.5 mm² (AWG 26 to AWG 14)
- Stripping length: 13 mm
- Material: Insulating PBT, color orange (RAL 2000), contact material CuSn, tinned surface with 4-8 μm Sn layer
- Temperature range: -25°C to +100°C, storage -25°C to +55°C
- Flammability: UL 94V-0, CTI > 200, contact protection according to DIN VDE
- Screw size: M2.5, tightening torque 0.4-0.5 Nm
- Number of wiring cycles: 25
- Push-in force: 10 N per pole, withdrawal force: 8 N per pole
Buy the Buy Weidmüller PCB Female Connector Part Number 1500060000 Online
Purchase the Weidmüller PCB female connector with part number 1500060000 online now. Designed for robust industrial applications, it features 7 poles, a 180° outlet, and a top screw connection system. Its high current rating of 27 A at 400 V ensures reliable power distribution. Constructed with durable orange PBT insulation, it offers excellent temperature stability from -25°C to 100°C. Easy to install with a clamping range from 0.13 mm² to 2.5 mm², it supports up to 25 wiring cycles, making it ideal for control panels and automation systems.
Get Weidmüller 1500060000 today—designed for industrial automation, offering reliable, space-saving connection solutions with high current capacity.
