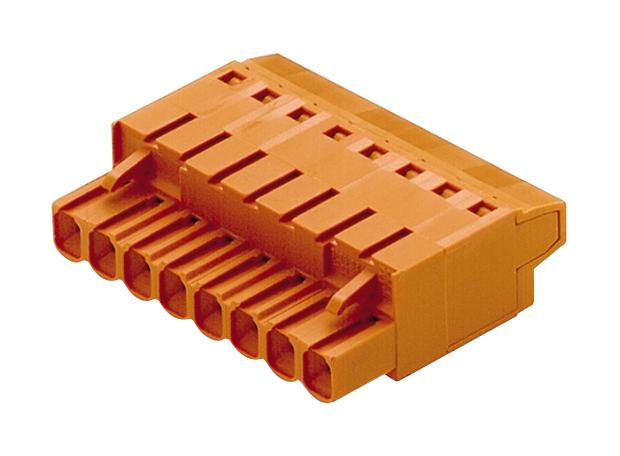

WEIDMULLER 1500560000 Female PCB Connector
The female connectors feature a TOP screw connection system with a 180° outlet orientation, designed for secure wire connections in industrial applications. These PCB plug-in female connectors support up to 12 poles, with a clamping range of 0.13 mm² to 2.5 mm², making them suitable for various wiring needs. Crafted from PBT with a vibrant RAL 2000 orange color, they offer high flame resistance (UL V0) and excellent insulation resistance of 210°, certified for UL, CSA, and IEC standards. These connectors withstand operating temperatures from -60°C to 100°C and store at up to 80% humidity, ensuring reliable performance in demanding environments.
WEIDMULLER 1500560000 Female PCB Connector Specifications:
- Number of poles: 12
- Connection type: TOP screw connection
- Pitch: 5.08 mm (0.2 inch)
- Rated voltage: 400 V (IEC), 300 V (UL/CSA)
- Rated current: 27 A (IEC), 17 A (UL), 15 A (CSA)
- Clamping range: 0.13 mm² to 2.5 mm²
- Wire cross-section: AWG 26 to AWG 14
- Material: PBT, orange color (RAL 2000)
- Insulation resistance: 210°
- Flammability rating: UL V0
- Operating temperature: -60°C to 100°C
- Storage temperature: -25°C to 55°C
- Max humidity: 80%
- Protection class: Safe from finger touch according to DIN VDE
- Tightening torque: 0.4 to 0.5 Nm
- Screwdriver size: 0.6 x 3.5 mm
- Pluggable up to 25 cycles
- Wire end ferrules supported, with or without plastic collar
- Certification: UL, CSA, IEC
Buy the Weidmiiller BLT 5.08HC/12/180 SN – Reliable PCB Female Connectors for Industrial Applications
Purchase the Weidmiiller Series BLT 5.08HC/12/180 SN online today and enjoy secure, high-current connections essential for industrial automation and control solutions. These female connectors feature a robust TOP screw system with 12 poles, supporting wire sizes from AWG 26 to AWG 14, rated up to 400V and 27A. Constructed with durable PBT material in a bright orange color, they offer excellent resistance to heat, flammability, and environmental factors. Perfect for mounting on PCB boards, these connectors ensure safety, easy wiring, and reliable long-term performance in demanding environments.
Order your Weidmiiller Series BLT 5.08HC/12/180 SN today and secure high-current, reliable connections for your industrial wiring projects.
