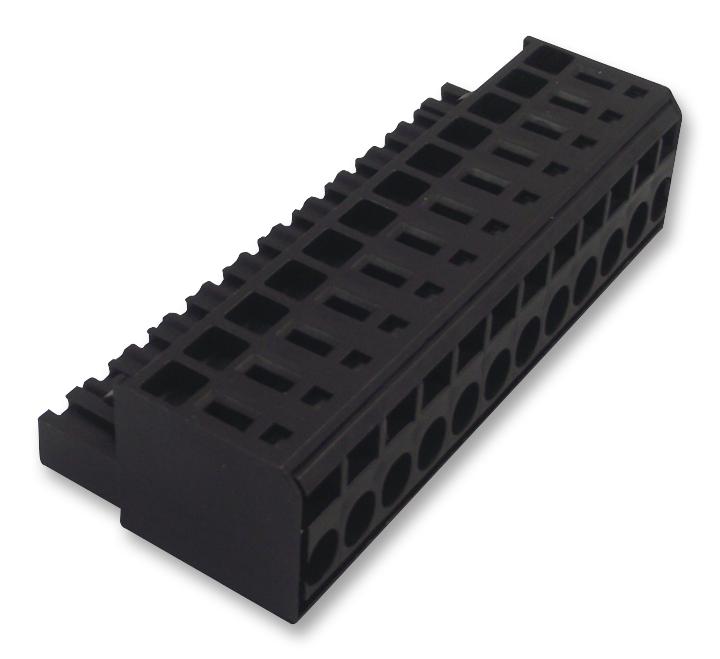

WEIDMULLER 1707790000 Female connector
This female plug features a tension-clamp wire connection system with a straight 180° outlet, designed for reliable electrical connections in automation and control systems. Made from flame-retardant PBT with copper alloy contacts, the plug ensures durability, high insulation resistance, and safe finger-touch protection, conforming to DIN VDE standards. Suitable for wiring from 0.13 mm² to 3.31 mm², it supports AWG 26 to AWG 12 wire sizes. Its compact design, labeling space, and coding options make it ideal for industrial automation applications, offering secure and efficient connectivity.
WEIDMULLER 1707790000 Female connector Specifications:
- Pitch in mm: 5.08 mm
- Pitch in inches: 0.2 inch
- Number of poles: 12
- Outlet direction: 180°
- Material: PBT (insulating), Copper alloy (contacts)
- Contact surface: Tinned
- Max. clamping range: 3.3 mm
- Wire cross-section: AWG 26 to AWG 12, 0.2 mm² to 3.31 mm²
- Rated current: 17A (IEC), 15A (UL, CSA)
- Rated voltage: 300V (UL, CSA), 400V (IEC)
- Temperature range: -60°C to 100°C
- Insulation resistance: >10 GΩ
- Flammability rating: UL 94 V-0
- Contact material: Copper alloy, black, tinned
- Dimensions: Length 55.88 mm, width not specified, height standard
Buy the Weidmüller Series BL/SL Female Plug: BLZF 5.08/12/180 SN BK BX
Purchase the Weidmüller female connector with tension-clamp system online now. Designed for robust and secure wiring in automation, it features a straight 180° outlet, high insulation resistance, and flame-retardant materials. Suitable for wire sizes AWG 26 to AWG 12, it provides a reliable and safe connection in industrial environments. Its compact design allows easy integration into control panels and automation systems. Enhance your projects with this high-quality plug—order today for quick delivery and exceptional performance.
Buy Weidmüller BLZF 5.08/12/180 SN BK BX now and experience unmatched reliability and performance in electrical connections.
Frequently Asked Questions
Where can I buy WEIDMULLER 1707790000?
You can click on the BUY or RFQ button to purchase 1707790000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1707790000?
You can download the 1707790000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1707790000?
WEIDMULLER
