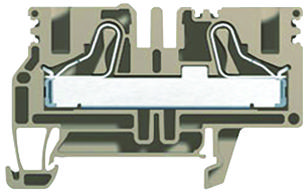

WEIDMULLER 1896140000 Feed-through Terminal
The PDU 6/10 is a high-quality, compact feed-through terminal featuring PUSH IN technology for quick, secure, and easy wiring. Suitable for conductor cross-sections up to 10 mm² and voltage ratings of 800 V, it offers reliable connection for industrial electrical applications. Made from UL 94 V-0 rated material, it withstands temperatures from -50°C to 120°C, ensuring durability in demanding environments. Its slim design measures 8.1mm in width, 64.5mm in height, and 40.5mm in depth, providing efficient space utilization on mounting rails with a maximum current capacity of 57A.
WEIDMULLER 1896140000 Feed-through Terminal Specifications:
- Width: 8.1mm (0.319 inch)
- Height: 64.5mm (2.539 inch)
- Depth: 40.5mm (1.594 inch)
- Operating temperature: -50°C to 120°C
- Material: Wemid, UL 94 V-0 rated
- Rated voltage: 800 V
- Rated current: 57 A
- Wire cross section max.: 10 mm²
- Wire connection: PUSH IN technology, for conductor sizes AWG8 to AWG16
- Number of clamping points per level: 2
- Number of potentials: 1
- Explosion-tested: Yes
- Mounting: Snap-on to TS 35 DIN rails
- Certifications: UL, IECEx, ATEX, CSA
Buy the Buy Weidmuller Feed-through Terminal Part Number 1896140000 Online
Order the Weidmuller feed-through terminal 1896140000 online today to ensure fast, secure wiring for your electrical projects. With PUSH IN technology, this terminal guarantees high conductor pull-out forces and simple handling for conductor cross-sections up to 10 mm². Its compact size fits easily on TS 35 DIN rails, saving space while providing reliable performance up to 57A and 800V. Made from UL 94 V-0 rated material, it endures temperatures from -50°C to 120°C, suitable for demanding industrial environments.
Buy Weidmuller 1896140000 now and experience unmatched reliability and performance with quick PUSH IN wiring technology for industrial systems.
