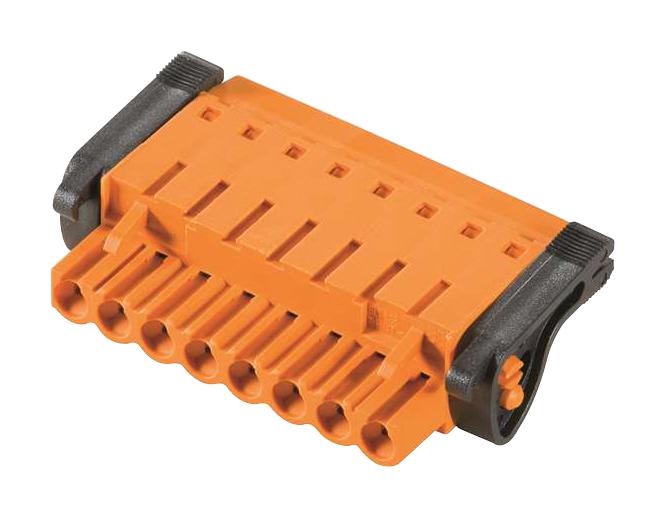

WEIDMULLER 1890280000 Female Plug Connector

WEIDMULLER 1890280000 Female Plug Connector Specifications:

• Type: BLT 5.08HC/08/180LR SN OR BX
• Order No.: 1890280000
• Version: PCB plug-in connector, female plug, 5.08 mm, No. of poles: 8, 180°, TOP connection, Clamping range, max. : 2.5 mm², Box
• GTIN(EAN): 4032248498765
• Quantity: 36pc(s).
• Product data IEC: 400 V / 27 A / 0.2 - 2.5 mm²
• Product data UL: 300 V/17 A/AWG 26 - AWG 14
• Packaging: Box
• Product family: OMNIMATE Signal - series
• Wire connection method: TOP connection
• Pitch in inches: 0.2 inch
• No. of poles: 8
• L1 in inches: 1.4 inch
• Pin seriesquantity: 1
• Touch-safe protection: Safe from finger touch
• Can be coded: Yes
• Tightening torque min: 0.4 Nm
• Clamping screw: M 2.5
• Screwdriver blade standard: DIN 5264
• Push-in force per pole: 10 N
• Type of connection: TOP connection
• Pitch in mm: 5.08 mm
• Conductor outlet direction: 180°
• L1 in mm: 35.56 mm
• Number of rows: 1
• Rated cross-section: 2.5 mm²
• Volume resistance: 4.50 mΩ
• Stripping length: 13 mm
• Tightening torque max: 0.5 Nm
• Screwdriver blade: 0.6 x 3.5
• Plugging cycles: 25
• Withdrawal force per pole: 8 N
• Insulating material: PBT
• Colour: Orange
• Insulating material group: IIIa
• Insulation resistance: ≥ 108Ω
• Contact material: CuSn
• Layer structure of plug contact: 4-8µm Sn hot-diptinned
• Storage temperature min: -25 °C
• Max. relative humidity during storage: 80 %
• Operating temperature max: 100 °C
• Temperature range installation max: 100 °C
• Clamping range min: 0.13 mm²
• Wire connection cross section AWG min: AWG 28
• Solid min H05(07)V-U: 0.2 mm²
• Flexible min H05(07)V-K: 0.2 mm²
• w. plastic collar ferrule DIN 46228 pt 4 min: 0.2 mm²
• w. wire end ferrule DIN 46228 pt 1 min: 0.2 mm²
• Clamping range max: 2.5 mm²
• Wire connection cross section AWG max: AWG 14
• Solid max H05(07)V-U: 2.5 mm²
• Flexible max H05(07)V-K: 1.5 mm²
• w. plastic collar ferrule DIN 46228 pt 4 max: 1.5 mm²
• w. wire end ferrule DIN 46228 pt 1 max: 1.5 mm²
• Plug gauge acc. to EN 60999 a x b; Ø: 2.4 mm x 1.5 mm
• Rated current max no. of poles Tu=20°C: 19 A
• Rated current max no. of poles Tu=40°C: 16 A
• Rated voltage for surge voltage class / pollution degree III/2: 320 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
• Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV
• Rated current min no. of poles Tu=20°C: 27 A
• Rated current min no. of poles Tu=40°C: 24 A
• Rated voltage for surge voltage class / pollution degree II/2: 400 V
• Rated voltage for surge voltage class / pollution degree III/3: 250 V
• Short-time withstand current resistance: 3 x 1s with 100 A
• Rated voltage Usegroup B CSA: 300 V
• Rated current Usegroup B CSA: 15 A
• Wire cross-section AWG min CSA: AWG 26
• Rated voltage Usegroup D CSA: 300 V
• Rated current Usegroup D CSA: 15 A
• Wire cross-section AWG max CSA: AWG 14
• Rated voltage Usegroup B UL 1059: 300 V
• Rated current Usegroup B UL 1059: 17 A
• Reference to approval values: Specifications are maximum values, details - see approval certificate
• Certificate No. cURus: E60693
• Rated voltage Usegroup D UL 1059: 300 V
• Rated current Usegroup D UL 1059: 10 A
• Wire cross-section AWG max UL 1059: AWG 14
