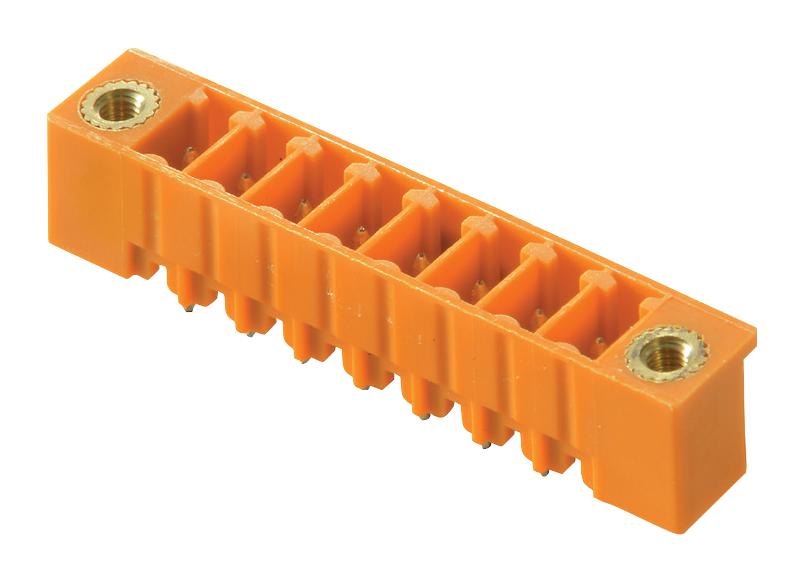

WEIDMULLER 1943250000 PCB Plug-in Connector

WEIDMULLER 1943250000 PCB Plug-in Connector Specifications:

• Type: SC 3.81/09/180F 3.2SN OR BX
• Order No.: 1943250000
• Version: PCB plug-in connector, male header, Flange, THT
• GTIN(EAN): 4032248654345
• Quantity: 50pc(s)
• Product data - IEC: 320 V / 17.5 A
• Product data - UL: 300 V/10 A
• Packaging: Box
• Mounting onto the PCB: THT solder connection
• Pitch in inches(P): 0.15 inch
• No. of poles: 9
• Solderpin length(l): 3.2 mm
• Tolerance of solderpinposition: ± 0.1 mm
• Solderpin dimensions tolerance: 0/-0,03 mm
• Solder eyelet hole diameter tolerance: + 0,1 mm
• L1 in inches: 1.2 inch
• Pin series quantity: 1
• Touch-safe protection acc. to DIN VDE: IP 20
• Can be coded: Yes
• Type of connection: Board connection
• Pitch in mm(P): 3.81 mm
• Outgoing elbow: 180°
• Number of solderpinsperpole: 1
• Solderpin length tolerance: 0/-0,02 mm
• Solderpin dimensions: d = 1.0 mm, Octagonal
• Solder eyelet hole diameter: 1.2 mm
• L1 in mm: 30.48 mm
• Number of rows: 1
• Volume resistance: 6.00 mΩ
• Plugging cycles: 25
• Insulating material: PA GF
• Colour: Orange
• Insulating material group: II
• Insulation resistance: ≥ 108Ω
• Contact material: Copper alloy
• Storage temperature, max.: 55 °C
• Operating temperature, min.: -50 °C
• Temperature range, installation, min.: -25 °C
• Rated data acc. to IEC - Rated current, max. no. of poles (Tu=20°C): 17.1 A
• Rated data acc. to IEC - Rated current, max. no. of poles (Tu=40°C): 17.1 A
• Rated data acc. to IEC - Rated voltage for surge voltage class / pollution degree III/2: 160 V
• Rated data acc. to IEC - Rated impulse voltage for surge voltage class/ pollution degree II/2: 2.5 kV
• Rated data acc. to IEC - Rated impulse voltage for surge voltage class/ contamination degree III/3: 2.5 kV
• Rated data acc. to IEC - Rated current, min. no. of poles (Tu=20°C): 17.5 A
• Rated data acc. to IEC - Rated current, min. no. of poles (Tu=40°C): 17.5 A
• Rated data acc. to IEC - Rated voltage for surge voltage class / pollution degree II/2: 320 V
• Rated data acc. to IEC - Rated voltage for surge voltage class / pollution degree III/3: 160 V
• Rated data acc. to IEC - Short-time withstand current resistance: 3 x 1s with 76 A
• Rated data acc. to CSA - Rated voltage (Use group B): 300 V
• Rated data acc. to CSA - Rated current (use group B): 8 A
• Rated data acc. to CSA - Certificate No. (cURus): E60693
• Rated data acc. to CSA - Rated voltage(usegroupD): 300 V
• Rated data acc. to CSA - Rated current(usegroupD): 10 A
• ETIM 4.0: EC002637
• ETIM 5.0: EC002637
• eClass 5.1: 27-26-11-02
• eClass 7.1: 27-44-04-02
• eClass 9.0: 27-44-04-02
• IPC conformity: Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2".
