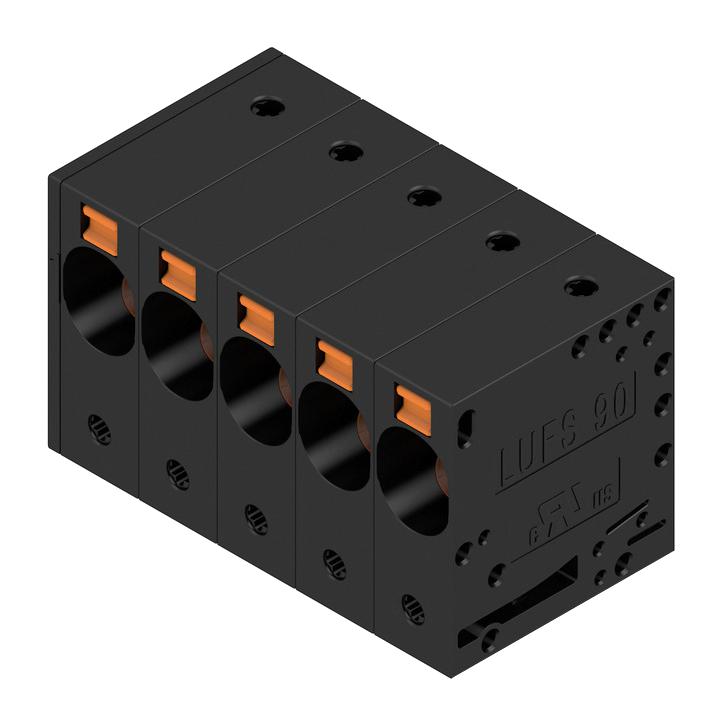

WEIDMULLER 2500480000 PCB Terminal
This high-performance PCB terminal features a PUSH IN connection system for conductor cross-sections up to 16 mm², enabling fast, tool-free connections with secure contact points. Designed with a connection safety concept, conductors are always securely clamped. The terminal includes integrated test points for PS 2.0 test plugs and test probes, facilitating efficient testing. Its robust insulation material allows increased derating reserves. Suitable for PCB mounting, it offers a 10 mm pitch with five poles, and supports a wide range of wire types and sizes for versatile industrial and automation applications, ensuring reliable, maintenance-free operation.
WEIDMULLER 2500480000 PCB Terminal Specifications:
- System Series: LU
- Number of Poles: 5
- Connection Type: PUSH IN without actuator
- Solder Pin Length: 5 mm
- Pitch: 10 mm
- Width: 51.8 mm (2.039 inches)
- Height: 35 mm (1.378 inches)
- Depth: 28.55 mm (1.124 inches)
- Maximum Conductor Cross-Section: 16 mm²
- Clamping Range: 0.5 mm² to 16 mm²
- Wire Compatibility: AWG 18 to AWG 4
- Solder Eyelet Hole Diameter: 1.6 mm with +0.1 mm tolerance
- Solder Pin Dimensions: 1.2 mm diameter, octagonal
- Rated Voltage IEC: 1000 V
- Rated Current IEC: 76A (max poles) at 20°C, 53A at 40°C
- Rated Voltage UL/CSA: 600 V, Rated Current: 53A
- Operating Temperature Range: -40°C to 120°C
- Insulating Material: Wemid (PA), color black, operational elements: PA+GF orange
- Flammability Rating: UL 94 V0
- CTI: >600
- Material Base: Copper ECu
- Soldering Profile: Single/double wave soldering with max 260°C
Buy the Buy Weidmuller PCB Terminal Part Number 2500480000 Online
Purchase the Weidmuller PCB Terminal with Part Number 2500480000 online for fast, tool-free wiring and secure connection reliability up to 16 mm² conductor cross-section. Its integrated test points simplify testing procedures, while its high-quality insulating material and robust construction ensure long-term durability in industrial environments. Ideal for PCB mounting, this 5-pole terminal offers a 10 mm pitch, supporting a wide wire range from AWG 18 to AWG 4. Enhance your automation and control systems with this reliable terminal solution—order now to benefit from quick, secure connections without tools.
Buy Weidmuller 2500480000 now and experience unmatched reliability and performance with secure, tool-free connections for industrial PCB applications.
